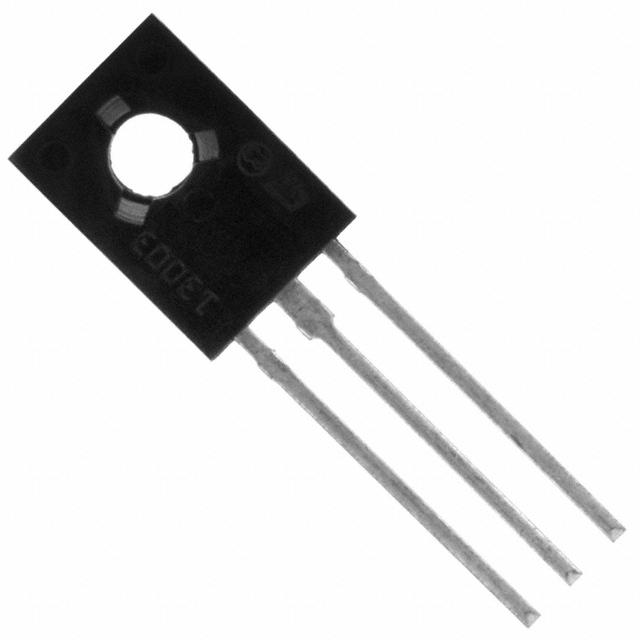

BD139-10
Bipolar (BJT) Transistor NPN 80 V 1.5 A - 1.25 W Through Hole SOT-32
Availability: In Stock
Package Type: TO-126
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BD139-10 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

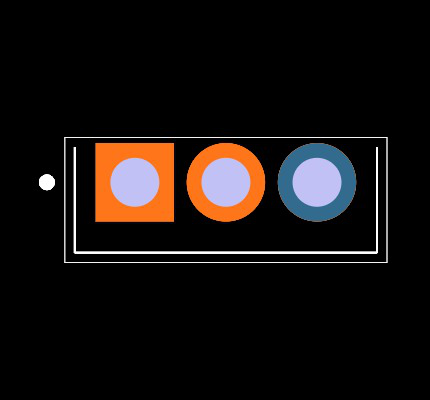

Footprint
No web preview
This Footprint is Available for

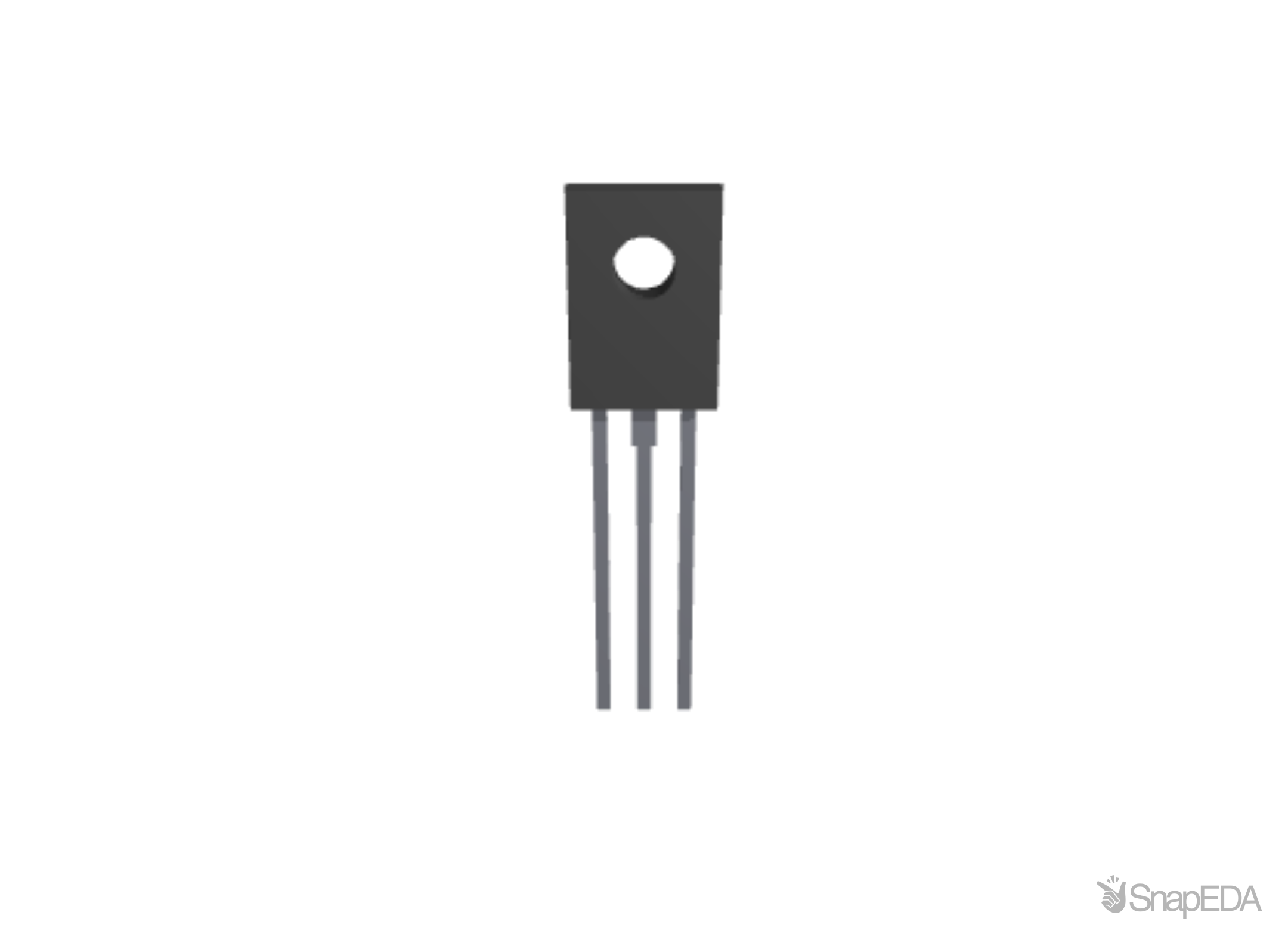

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BD139-10
| Part Name | BD139-10 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Transistor Type | NPN |
| Dimensions | 10.8 x 7.8 x 2.7 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 1.25 W |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Voltage (V) | 80 V |
| Maximum Emitter Base Voltage (V) | 5 V |
| Package Type | SOT-32 |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 3 A |
| Maximum Collector Base Voltage (V) | 80 V |
| Pin Count | 3 |
| Transistor Configuration | Single |
Inventory for the BD139-10 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,992
|
|
Visit Site | |
|
★ Featured
|
471
|
|
Visit Site | |
|
★ Featured
|
8,620
|
1,935 x $0.16
|
Visit Site | |
| Arrow Europe |
13,061
|
|
Visit Site | |
| Verical |
13,061
|
|
Visit Site |
No issues have been reported for the BD139-10
If you experienced any issues with the symbol or footprint, please report it.
