BD25KA5WF-E2
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 8-SOP
Availability: In Stock
Package Type: SOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BD25KA5WF-E2 by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

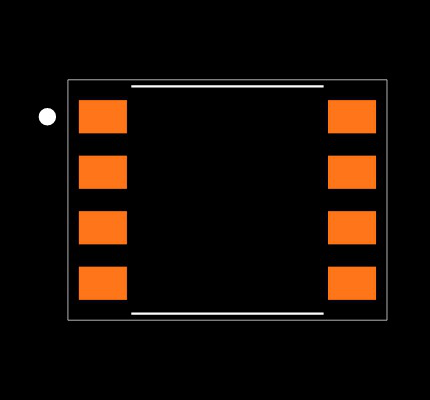

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BD25KA5WF-E2
| Part Name | BD25KA5WF-E2 |
| Manufacturer | Rohm |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Load Regulation | 75 mV |
| Dimensions | 5.35 x 4.4 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +105 °C |
| Line Regulation | 35 mV |
| Quiescent Current (A) | 0.001 (mA) |
| Output Type | Fixed |
| Height | 1.5 (mm) |
| Width | 4.4 (mm) |
| Length | 5.35 (mm) |
| Output Voltage (V) | 2.5 V |
| Package Type | SOP |
| Minimum Operating Temperature | -40 °C |
| Power Rating | 0.6876 (W) |
| Minimum Input Voltage (V) | 2.3 V |
| Maximum Output Current (A) | 500 (mA) |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 5.5 V |
| Accuracy | ±1 (%) |
Inventory for the BD25KA5WF-E2 by Rohm from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
2,500 x $0.74
|
Visit Site | |
|
★ Featured
|
9,440
|
1,105 x $0.31
|
Visit Site | |
| Verical |
2,375
|
154 x $1.01
|
Visit Site |
No issues have been reported for the BD25KA5WF-E2
