BD6222HFP-TR
ROHM BD6222HFP-TR Full Bridge Motor Driver Half-Bridge, 18 V 2A, 8-Pin HRP | ROHM Semiconductor BD6222HFP-TR
Availability: Out of Stock
Package Type: TO-263-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BD6222HFP-TR by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

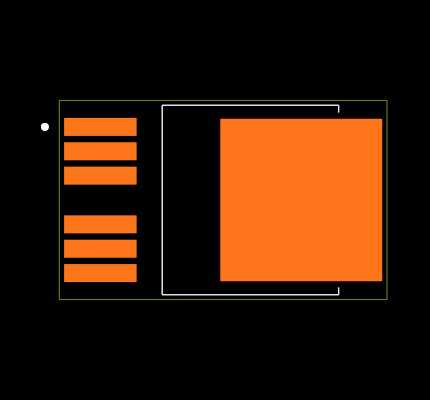

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BD6222HFP-TR
| Part Name | BD6222HFP-TR |
| Manufacturer | Rohm |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Motor Type | Brushed DC |
| Dimensions | 9.4 x 8 x 1.91 (mm) |
| Maximum Operating Supply Voltage (V) | 15 V |
| Mounting Type | Surface Mount |
| Maximum Collector Emitter Voltage (V) | 18 V |
| Maximum Igbt Collector Current (A) | 2 (A) |
| Height | 1.91 (mm) |
| Width | 8 (mm) |
| Length | 9.4 (mm) |
| Package Type | HRP |
| Minimum Operating Temperature | -40 °C |
| Output Configuration | Full Bridge |
| Minimum Operating Supply Voltage (V) | 6 V |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 7 |
