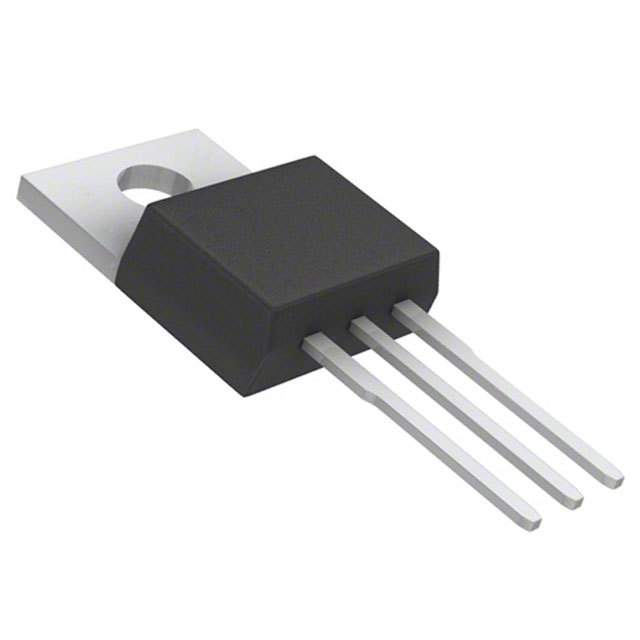

BDW93C
Transistor; Transistor Type:Bipolar; Transistor Polarity:NPN; Collector Emitter Saturation Voltage, Vce(sat):2V; Power Dissipation, Pd:80W; DC Current Gain Min (hfe):100; Package/Case:D2-PAK; C-E Breakdown Voltage:100V ;RoHS Compliant: Yes
Availability: In Stock
Package Type: TO-220
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BDW93C by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BDW93C
| Part Name | BDW93C |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Dc Current Gain (A) | 100 |
| Transistor Type | NPN |
| Dimensions | 10.4 x 4.6 x 9.15 (mm) |
| Mounting Type | Through Hole |
| Width | 4.6 (mm) |
| Maximum Collector Emitter Saturation Voltage (V) | 3 V |
| Maximum Collector Emitter Voltage (V) | 100 V |
| Minimum Operating Temperature | -65 °C |
| Maximum Base Emitter Saturation Voltage (V) | 4 V |
| Height | 9.15 (mm) |
| Maximum Continuous Collector Current (A) | 12 A |
| Length | 10.4 (mm) |
| Package Type | TO-220 |
| Number Of Elements Per Chip | 1 |
| Maximum Collector Cut Off Current (A) | 0.1 (mA) |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Base Voltage (V) | 100 V |
| Pin Count | 3 |
| Transistor Configuration | Single |
