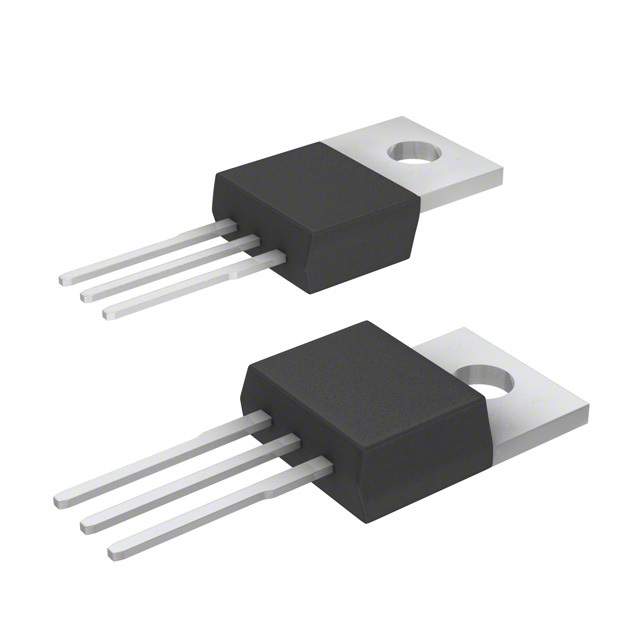

BDX54

Name: BDX54
Brand: STMicroelectronics

Bipolar (BJT) Transistor PNP - Darlington 80 V 8 A - 60 W Through Hole TO-220

Availability: Out of Stock

Package Type: TO-220-3

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the BDX54 by STMicroelectronics and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

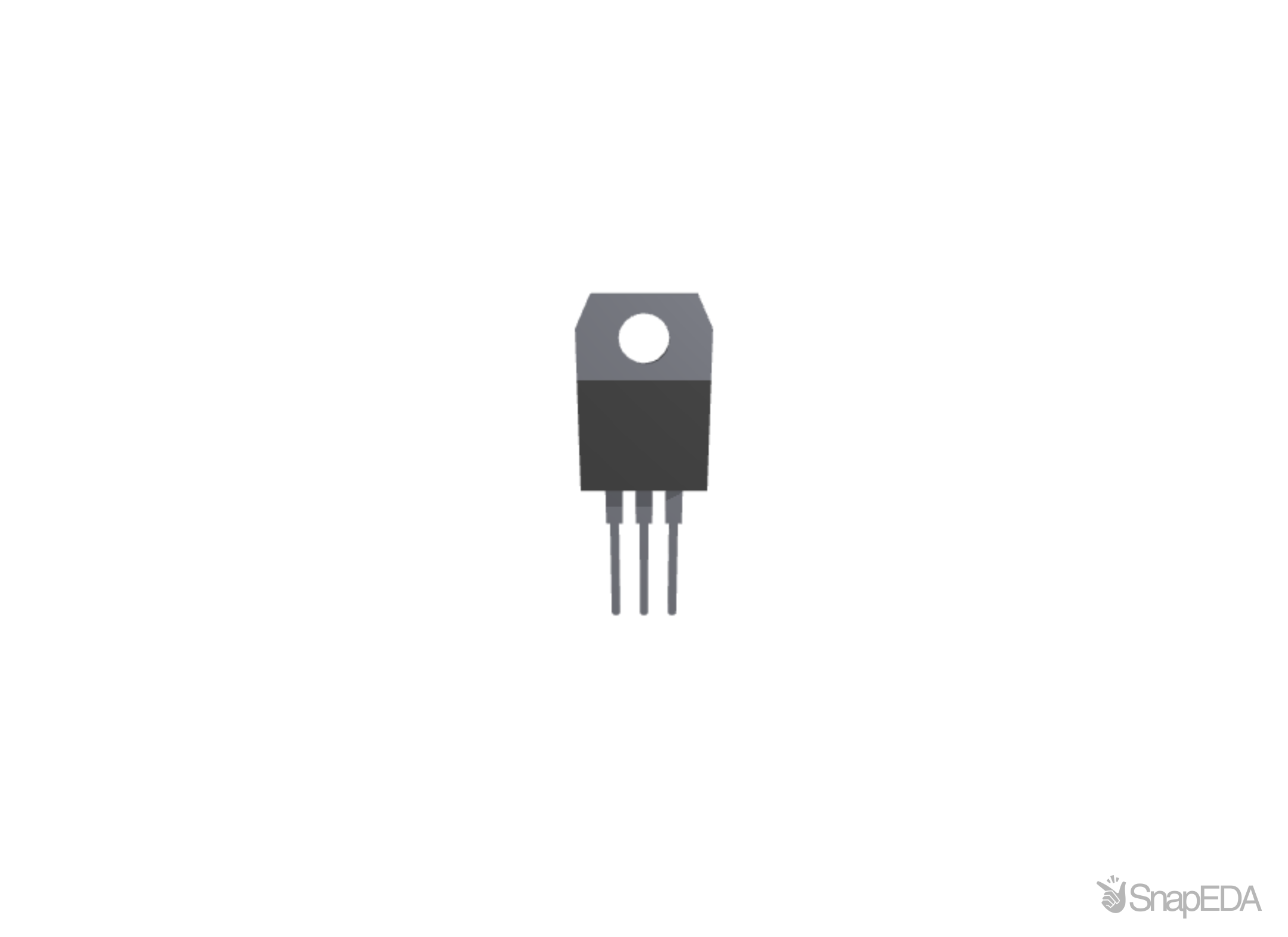

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the BDX54

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the BDX54

Part Name	BDX54
Manufacturer	STMicroelectronics
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Pin Count	3
Maximum Continuous Collector Current (A)	8 A
Minimum Dc Current Gain (A)	750
Transistor Type	PNP
Dimensions	10.4 x 4.6 x 9.15 (mm)
Mounting Type	Through Hole
Width	4.6 (mm)
Maximum Collector Emitter Saturation Voltage (V)	2 V
Maximum Collector Emitter Voltage (V)	100 V
Maximum Base Emitter Saturation Voltage (V)	2.5 V
Height	9.15 (mm)
Maximum Emitter Base Voltage (V)	5 V
Length	10.4 (mm)
Package Type	TO-220
Number Of Elements Per Chip	1
Maximum Collector Cut Off Current (A)	0.2 (mA)
Maximum Collector Base Voltage (V)	100 V
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-65 °C
Transistor Configuration	Single

We could not find inventory or pricing across major distributors for the BDX54 by STMicroelectronics.
