BDX54C
Bipolar (BJT) Transistor PNP - Darlington 100 V 8 A - 60 W Through Hole TO-220-3
Availability: Out of Stock
Package Type: TO-220
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BDX54C by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

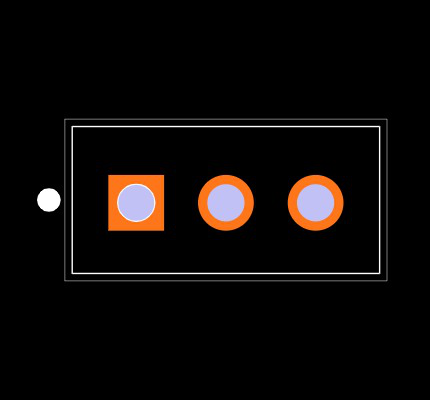

BuildFootprint
No web preview
This Footprint is Available for

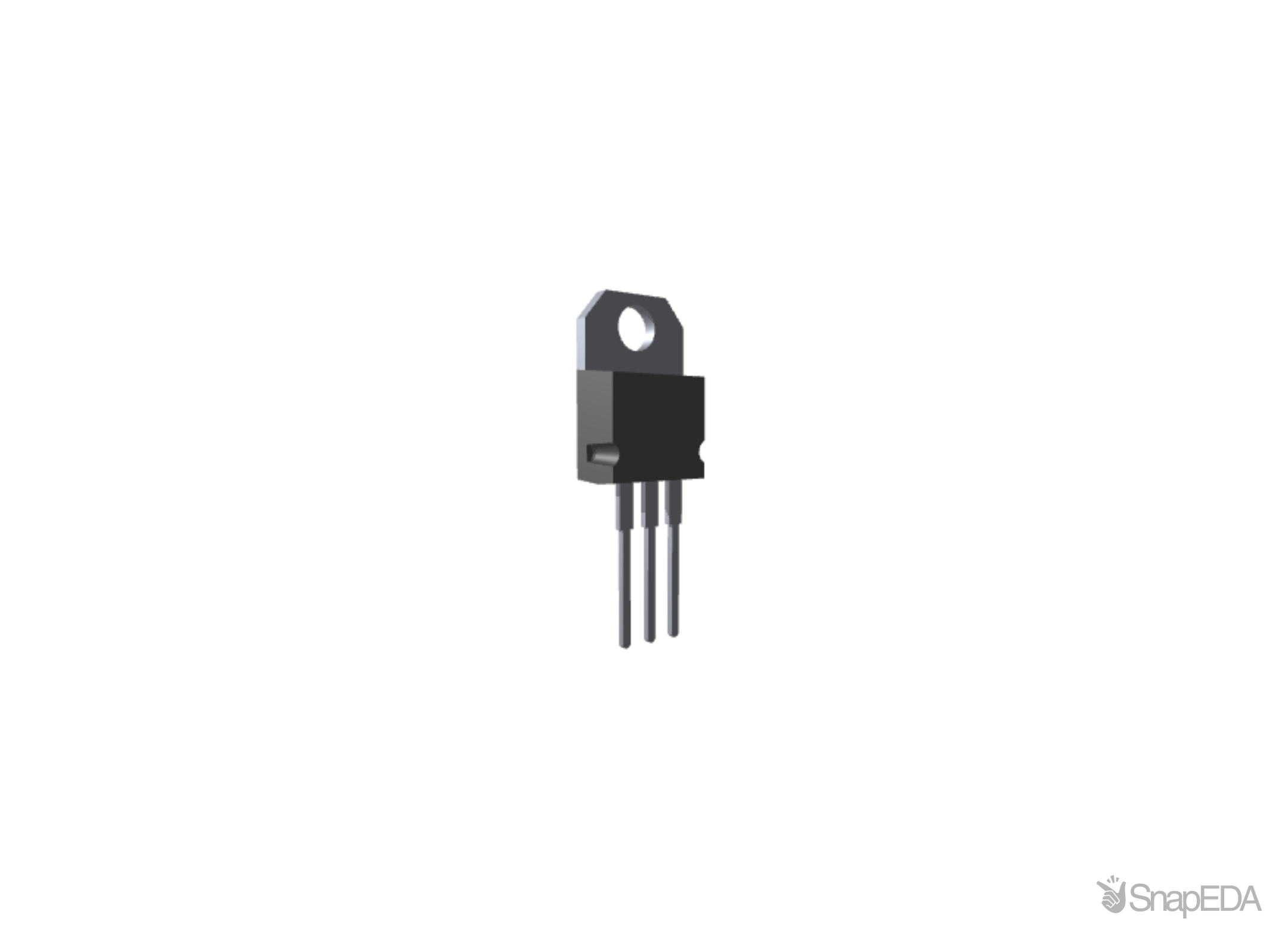

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BDX54C
| Part Name | BDX54C |
| Manufacturer | ON |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Continuous Collector Current (A) | -8 A |
| Minimum Dc Current Gain (A) | 750 |
| Width | 4.5 (mm) |
| Dimensions | 9.9 x 4.5 x 15.95 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 60 W |
| Maximum Collector Emitter Saturation Voltage (V) | -2 V |
| Maximum Collector Emitter Voltage (V) | 100 V |
| Maximum Base Emitter Saturation Voltage (V) | -2.5 V |
| Height | 15.95 (mm) |
| Maximum Emitter Base Voltage (V) | -5 V |
| Length | 9.9 (mm) |
| Package Type | TO-220 |
| Number Of Elements Per Chip | 1 |
| Maximum Collector Cut Off Current (A) | -500 μA, -200 μA |
| Transistor Type | PNP |
| Maximum Collector Base Voltage (V) | -100 V |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
No issues have been reported for the BDX54C
