BFR93A
RF Transistor NPN 12V 90mA 6GHz 300mW Surface Mount PG-SOT323-3
Availability: Out of Stock
Package Type: SOT-23-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BFR93A by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

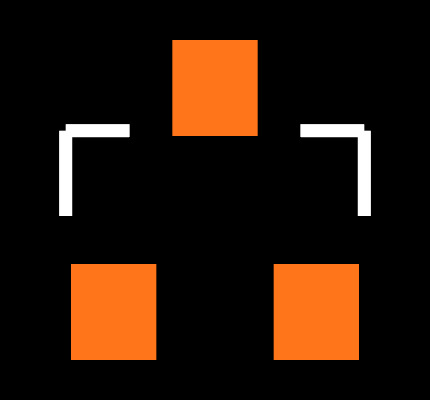

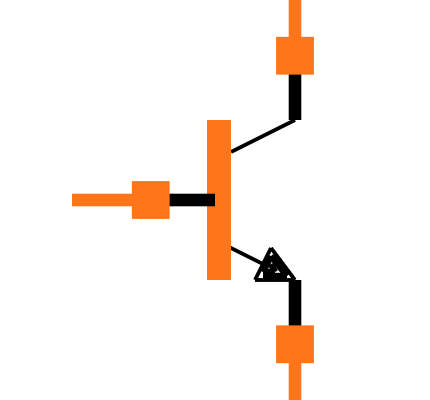

- Symbol and Footprint
- 3D Model
- Alternates

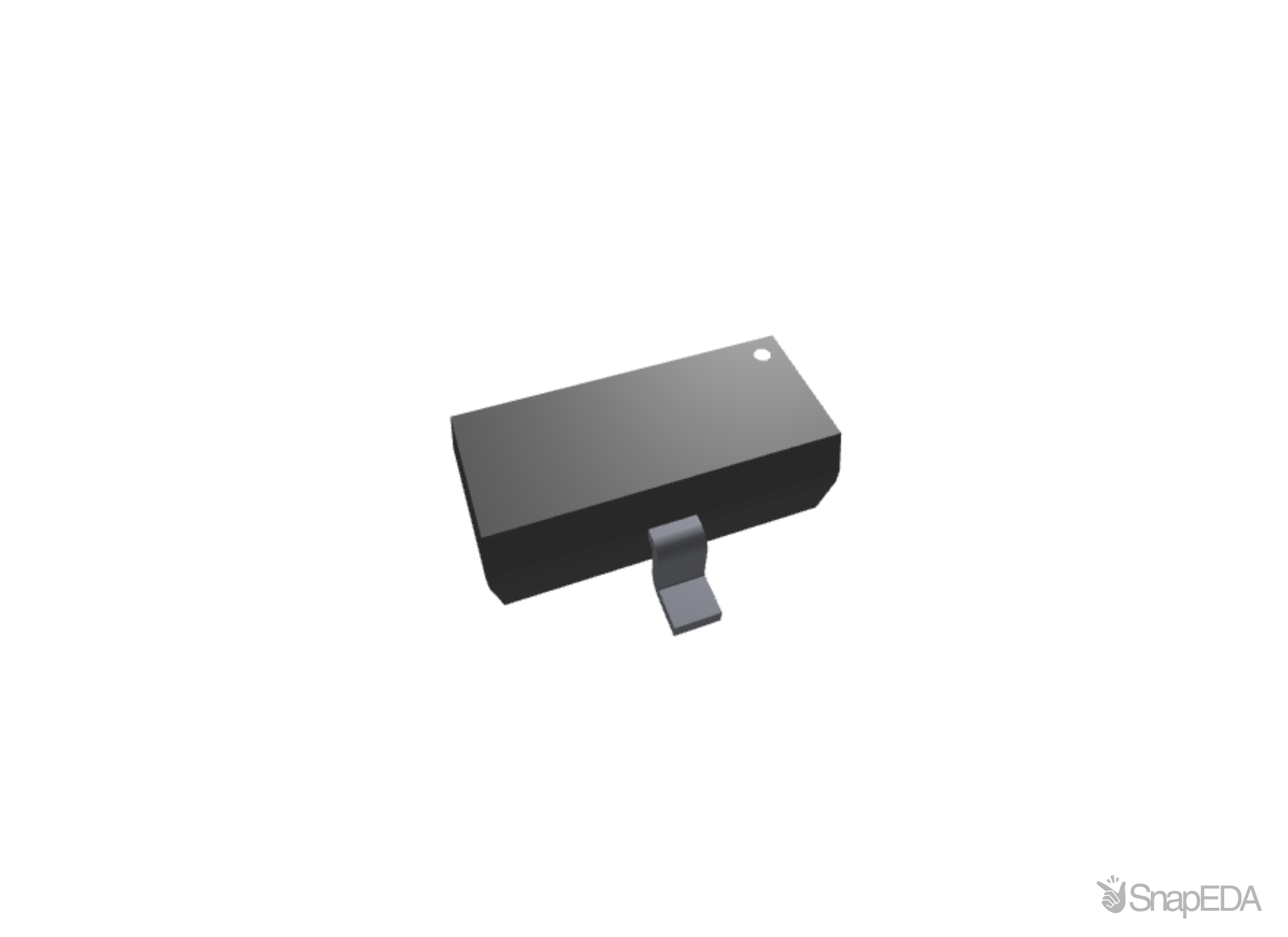

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BFR93A
| Part Name | BFR93A |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Life Cycle Status | Restricted Availability |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Transistor Type | NPN |
| Dimensions | 2.9 x 1.3 x 1 (mm) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Maximum Collector Emitter Voltage (V) | 12 V |
| Maximum Operating Frequency | 6 GHz |
| Maximum Emitter Base Voltage (V) | 2 V |
| Package Type | SOT-23 |
| Maximum Dc Collector Current (A) | 90 mA |
| Maximum Collector Base Voltage (V) | 20 V |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
No issues have been reported for the BFR93A
