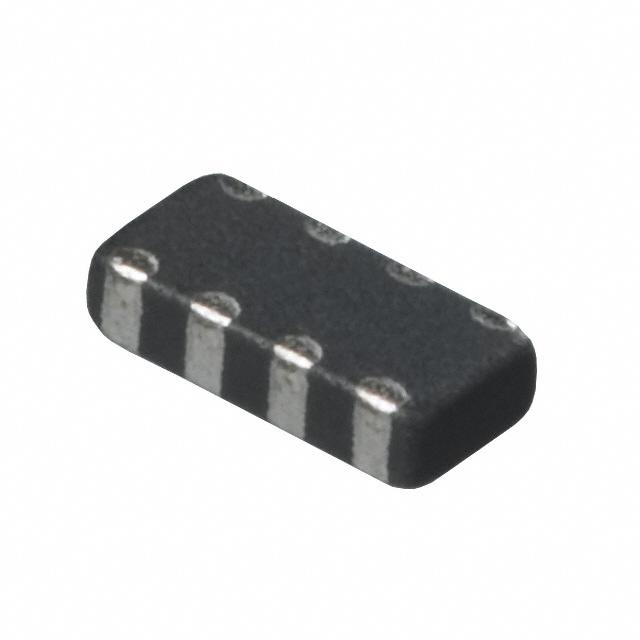

BLA2ABB221SN4D
220 Ohms @ 100 MHz 4 Signal Line Ferrite Bead 0804 (2010 Metric), Array, 8 PC Pad 50mA 900mOhm
Availability: In Stock
Package Type: 0804
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BLA2ABB221SN4D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

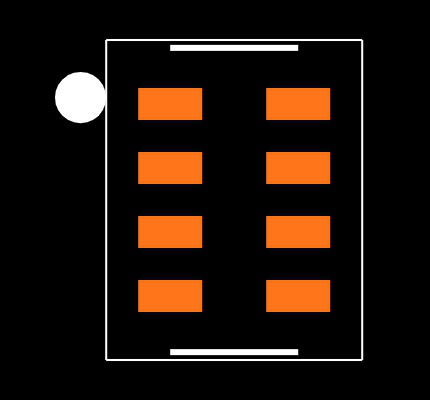

Footprint
No web preview
This Footprint is Available for

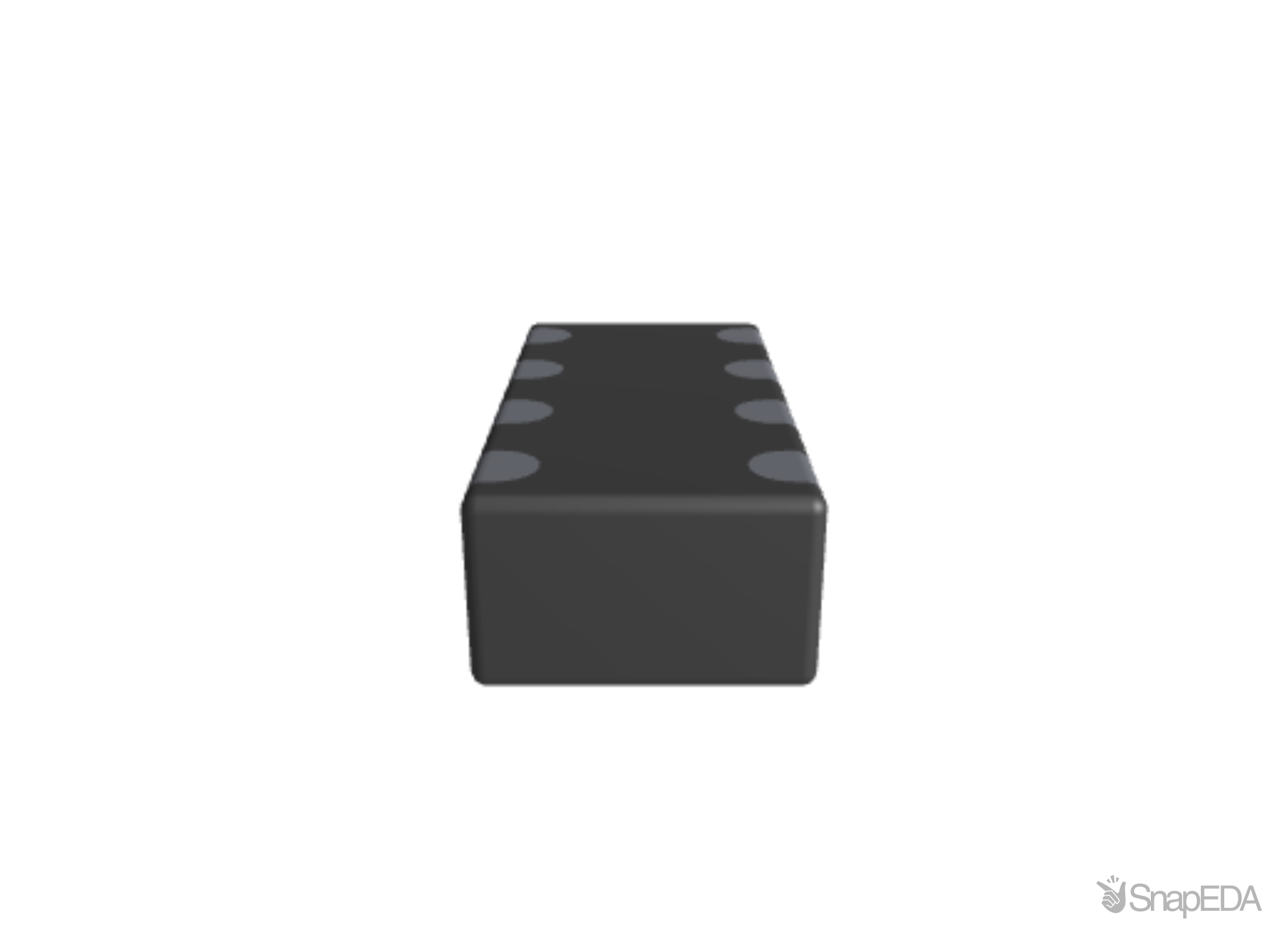

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BLA2ABB221SN4D
| Part Name | BLA2ABB221SN4D |
| Manufacturer | Murata |
| Impedance based on Impedance Frequency | 220.0 |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=BLA2ABB221SN4%23 |
| Current Rating (A) | 0.05 |
| Series | BLA2A_SN4 |
| Impedance Tolerance | 25% |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=BLA2ABB221SN4%23 |
| Impedance Frequency | 100000000.0 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 900 (mΩ) |
| Current Rating (A) | 50 (mA) |
| Dimensions | 2 x 1 x 0.5 (mm) |
| Series | BLA2ABB |
| Material | Ferrite |
| Impedance At 100 Mhz | 220 (Ω) |
| Height | 0.5 (mm) |
| Application | EMI Suppression Filter, High Speed Signal Lines |
| Depth | 1 (mm) |
| Length | 2 (mm) |
| Package Type | 0804 (2010M) |
| Type | Chip Ferrite Bead |
