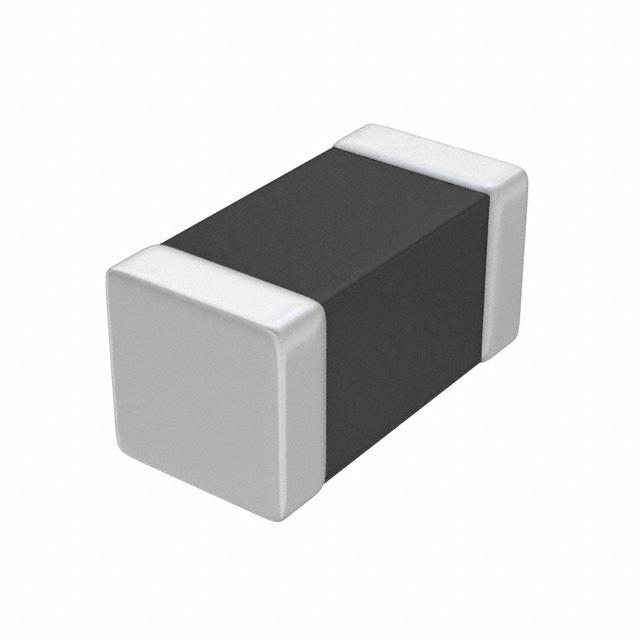

BLM18PG331SH1D
330 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 1.2A 150mOhm
Availability: In Stock
Package Type: 1608
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BLM18PG331SH1D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

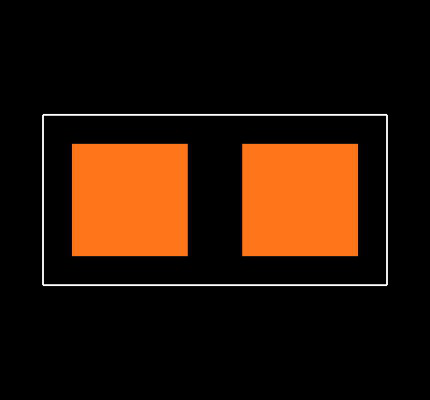

Footprint
No web preview
This Footprint is Available for

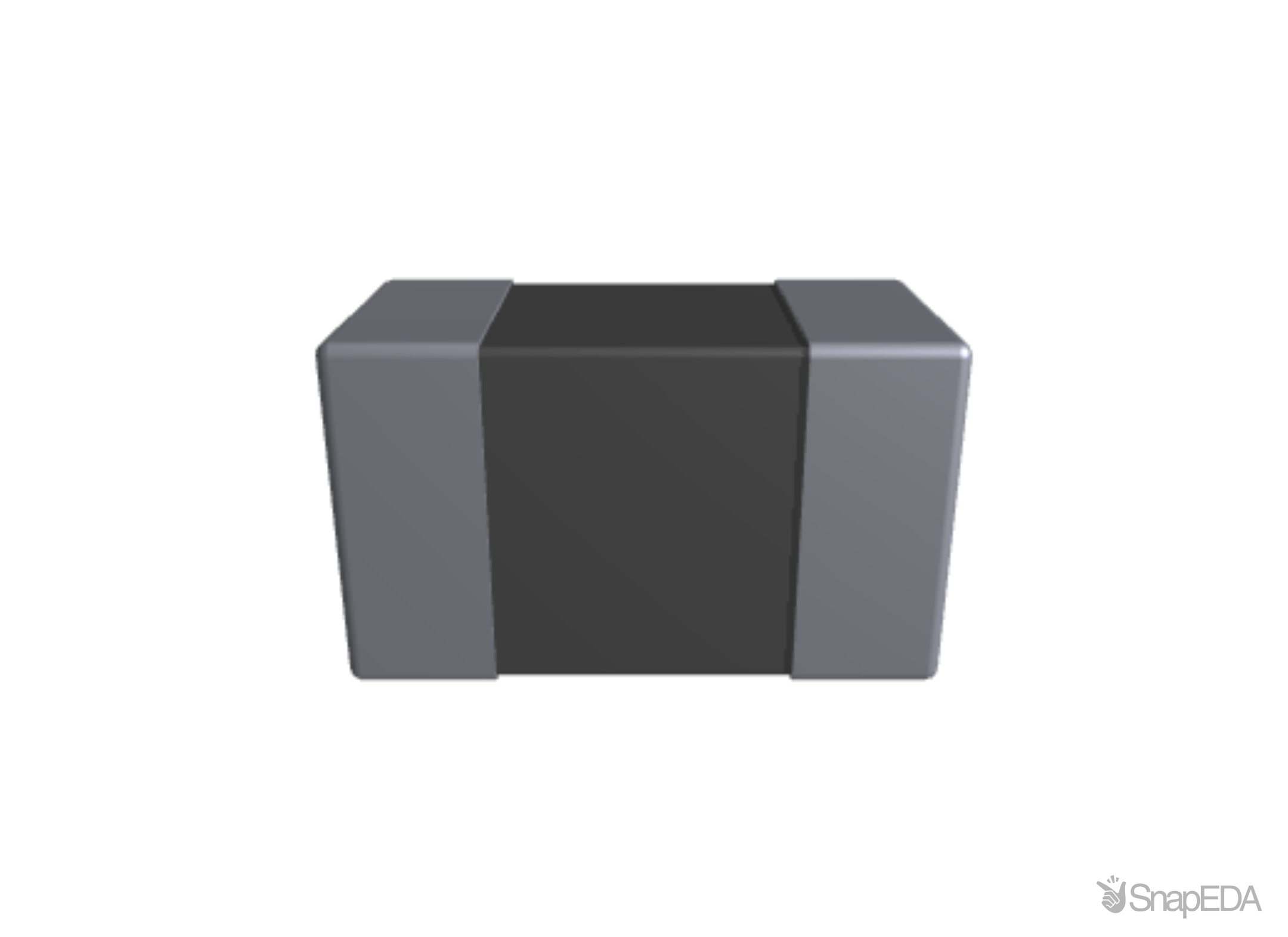

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BLM18PG331SH1D
| Part Name | BLM18PG331SH1D |
| Manufacturer | Murata Electronics |
| Impedance based on Impedance Frequency | 330.0 |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=BLM18PG331SH1%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22BLM18PG331SH1D%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Current Rating (A) | 1.2 |
| Series | BLM18_SH1 |
| Category | Ferrite Beads |
| Impedance Tolerance | 25% |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=BLM18PG331SH1%23 |
| Impedance Frequency | 100000000.0 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 0.15 (Ω) |
| Current Rating (A) | 1.2 (A) |
| Dimensions | 1.6 x 0.8 x 0.8 (mm) |
| Series | BLM18H |
| Material | Ferrite |
| Impedance At 100 Mhz | 330 (Ω) |
| Height | 0.8 (mm) |
| Application | Automotive, Powertrain, Safety |
| Depth | 0.8 (mm) |
| Length | 1.6 (mm) |
| Package Type | 0603 (1608M) |
| Type | Chip Bead |
