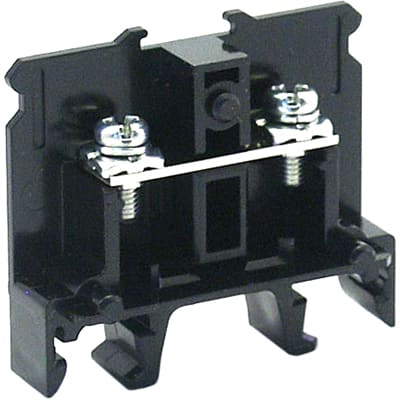

BN15MW
Conn Term Blk BN DIN Rail FeedThru 22 to 14 AWG 600V 10A, BN Series | IDEC Corporation BN15MW
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BN15MW by Idec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BN15MW
| Part Name | BN15MW |
| Manufacturer | Idec |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| American Wire Gauge | 22 → 14 (AWG) |
| Fused | Yes |
| Voltage Rating (V) | 600 V, 660 V |
| Series | BN |
| Colour | Black |
| Pitch | 8 (mm) |
| Minimum Operating Temperature | -25 (°C) |
| Termination Method | Screw |
| Current Rating (A) | 10 A, 16 A, 22 A |
| Maximum Operating Temperature | +55 (°C) |
Inventory for the BN15MW by Idec from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
136
|
|
Visit Site | |
| Onlinecomponents |
1,019
|
|
Visit Site | |
| RS Americas |
615
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| Verical |
1,000
|
|
Visit Site |
No issues have been reported for the BN15MW
