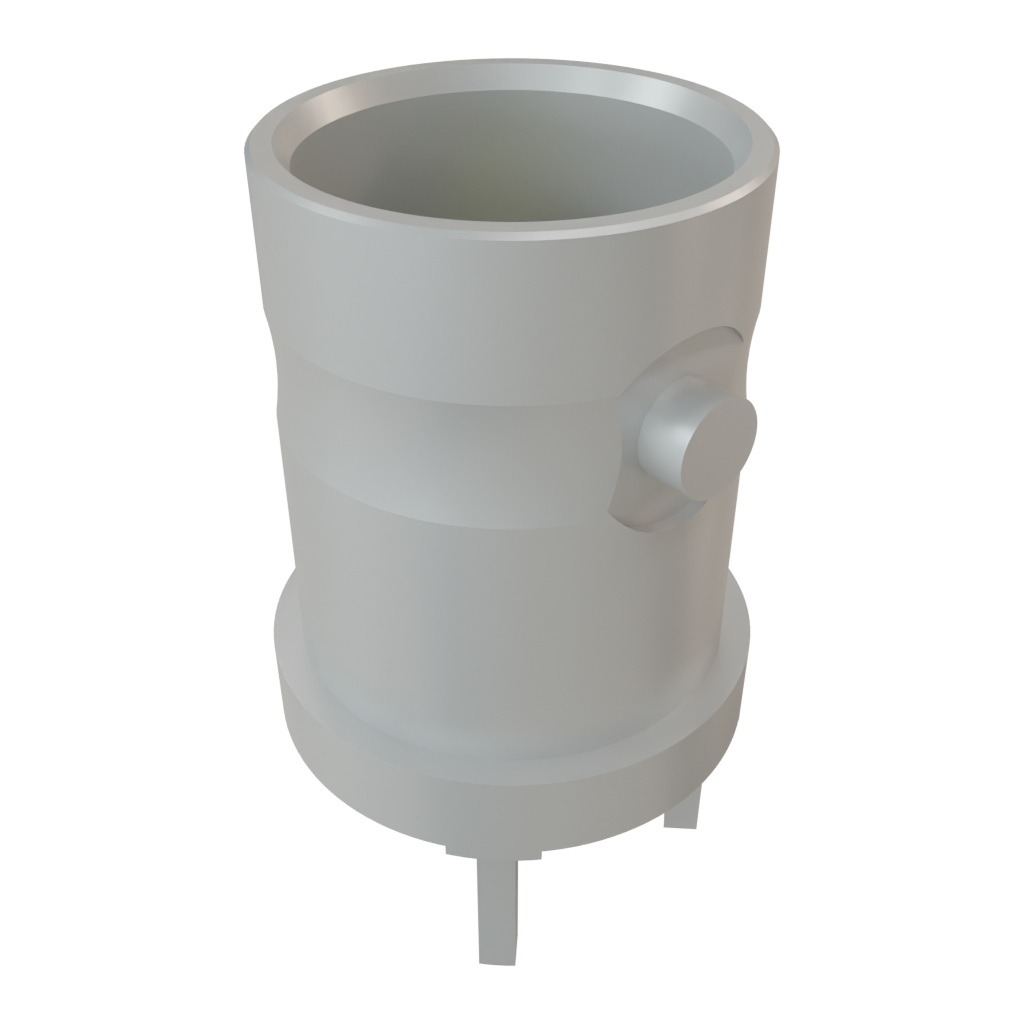

BNC7T-J-P-HN-ST-TH1
SnapVerified
BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder
Availability: In Stock
Country of Origin: Taiwan

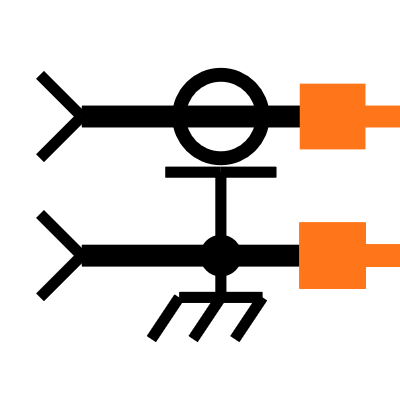

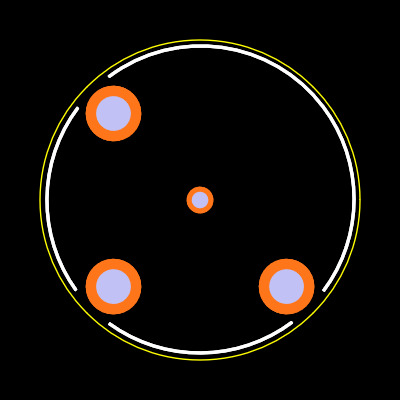

CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BNC7T-J-P-HN-ST-TH1 by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

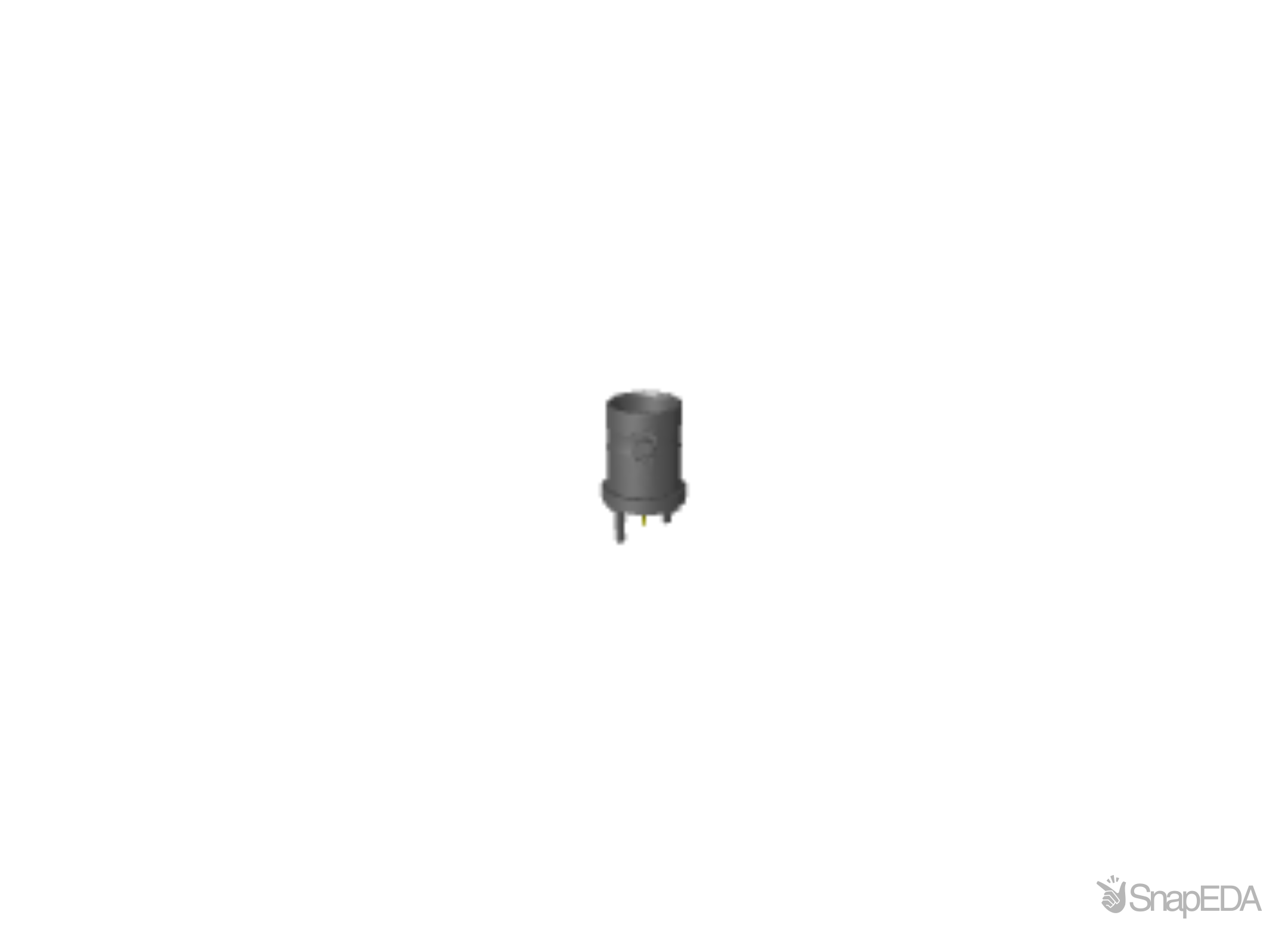

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BNC7T-J-P-HN-ST-TH1
| Part Name | BNC7T-J-P-HN-ST-TH1 |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | BNC7T |
| Country of Origin | Taiwan |
| Packaging | Bulk |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Nickel |
| Mounting Type | PCB Mount |
| Gender | Female |
| Body Orientation | Straight |
| Cable Type | Coaxial |
| Termination Method | Through Hole |
| Coaxial Connector Type | BNC Connector |
| Contact Plating | Gold |
| Series | BNC7T |
| Impedance | 75 (Ω) |
| Size | Standard |
| Contact Material | Copper Alloy |
Inventory for the BNC7T-J-P-HN-ST-TH1 by Samtec from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
| SAMTEC |
1,275
|
|
Visit Site |
No issues have been reported for the BNC7T-J-P-HN-ST-TH1
