BNX022-01
LC EMI Filter 5th Order Low Pass 2 Channel C = 1µF 20 A 4-SMD, No Lead
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BNX022-01 by Murata Electronics North America and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

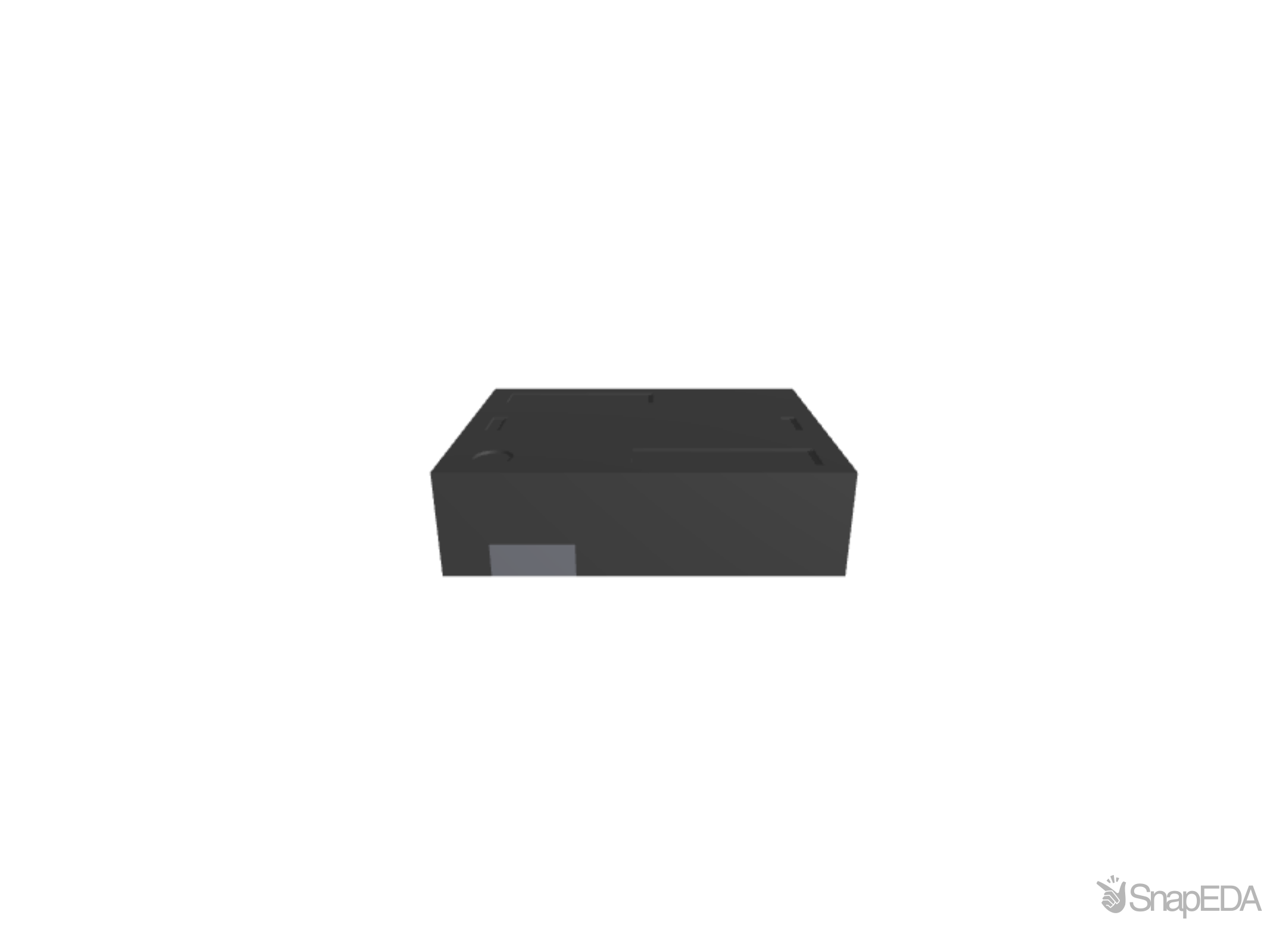

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BNX022-01
| Part Name | BNX022-01 |
| Manufacturer | Murata Electronics |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=BNX022-01%23 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 430 (µΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 12.1 x 9.1 x 3.1 (mm) |
| Maximum Dc Current (A) | 10 (A) |
| Series | BNX02 |
| Length | 12.1 (mm) |
| Height | 3.1 (mm) |
| Depth | 9.1 (mm) |
| Minimum Operating Temperature | +40 (°C) |
| Distrelec Product Id | 30373165 |
| Maximum Operating Temperature | +125 (°C) |
No issues have been reported for the BNX022-01
