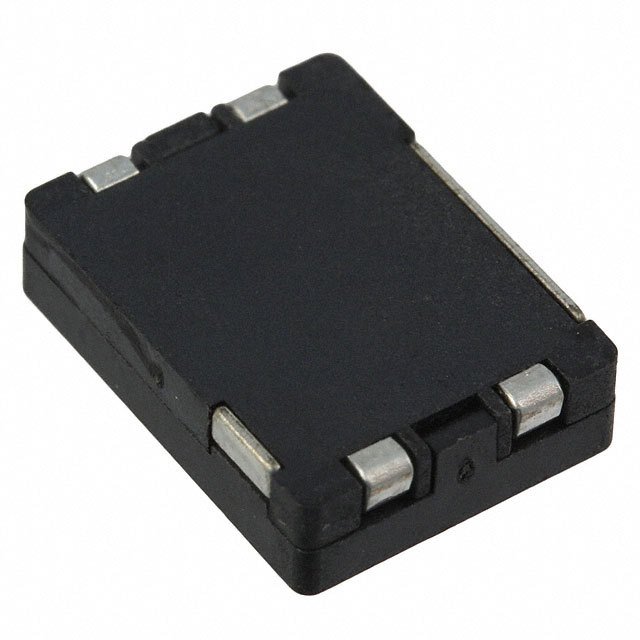

BNX028-01L
LC EMI Filter 5th Order Low Pass 2 Channel C = 47µF 20 A 4-SMD, J-Lead
Availability: Out of Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BNX028-01L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BNX028-01L
| Part Name | BNX028-01L |
| Manufacturer | Murata Electronics |
| Category | Signal Filters |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=BNX028-01%23 |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=BNX028-01%23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 12.1 x 9.1 x 3.5 (mm) |
| Mounting Type | Surface Mount |
| Series | BNX02 |
| Maximum Current Rating (A) | 15 (A) |
| Termination Style | Solder |
| Length | 12.1 (mm) |
| Height | 3.5 (mm) |
| Capacitance | 47 (µF) |
| Depth | 9.1 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Voltage Rating (V) | 16 V dc |
| Operating Frequency | 1 (GHz) |
| Maximum Operating Temperature | +105 (°C) |
No issues have been reported for the BNX028-01L
