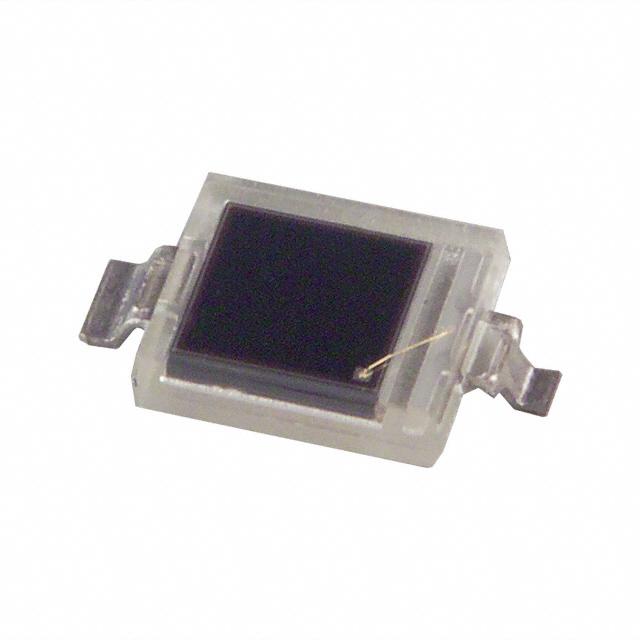

BPW 34 S-Z
Photodiode 850nm 20ns 120° 2-SMD, Gull Wing
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BPW 34 S-Z by Osram and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BPW 34 S-Z
| Part Name | BPW 34 S-Z |
| Manufacturer | OSRAM Opto |
| RoHS | True |
| Life Cycle Status | New at Mouser |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Reverse |
| Peak Photo Sensitivity | 0.62 (A/W) |
| Mounting Type | Surface Mount |
| Diode Material | Si |
| Maximum Wavelength Detected | 1100 (nm) |
| Height | 1.2 (mm) |
| Minimum Wavelength Detected | 400 (nm) |
| Width | 4 (mm) |
| Length | 4.5 (mm) |
| Spectrum S Detected | Infrared, Visible Light |
| Package Type | DIP |
| Wavelength Of Peak Sensitivity | 850 (nm) |
| Amplifier Function | No |
| Number Of Pins | 2 |
