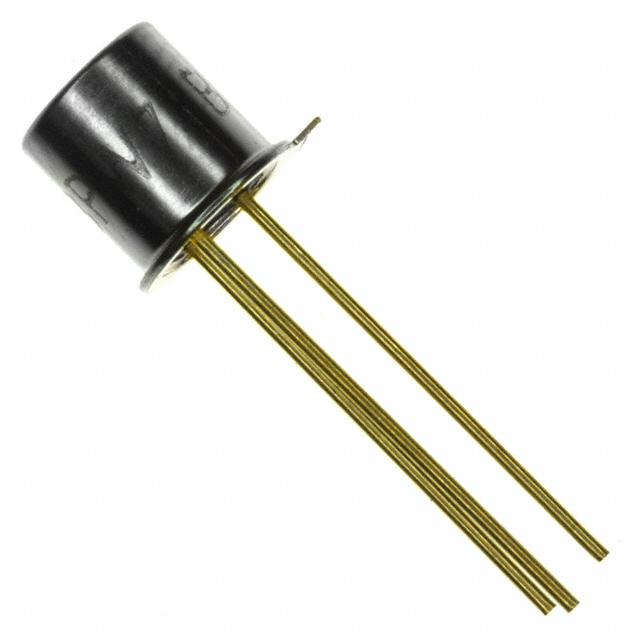

BPW76B
Phototransistors 850nm Top View TO-206AA, TO-18-3 Metal Can
Availability: In Stock
Package Type: TO-18
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BPW76B by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BPW76B
| Part Name | BPW76B |
| Manufacturer | Vishay |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | NPN |
| Diameter | 4.7 (mm) |
| Maximum Dark Current (A) | 100 (nA) |
| Mounting Type | Through Hole |
| Collector Current (A) | 50 (mA) |
| Typical Fall Time | 5 (µs) |
| Typical Rise Time | 6 (µs) |
| Maximum Light Current (A) | 600 (µA) |
| Maximum Wavelength Detected | 1080 (nm) |
| Height | 5.2 (mm) |
| Minimum Wavelength Detected | 450 (nm) |
| Spectrum(S) Detected | Infrared, Visible Light |
| Number Of Channels | 1 |
| Package Type | TO-18 |
| Spectral Range Of Sensitivity | 450 → 1080 nm |
| Angle Of Half Sensitivity | ±40 ° |
| Number Of Pins | 3 |
| Dimensions | 4.7 x 5.2 (mm) |
Inventory for the BPW76B by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
73
|
N/A | Visit Site | |
| Arrow Electronics |
9
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
398
|
|
Visit Site | |
| Newark |
398
|
|
Visit Site | |
| TTI Europe |
4,000
|
1,000 x $1.71
|
Visit Site | |
| Verical |
520
|
|
Visit Site | |
| element14 Singapore |
398
|
|
Visit Site |
No issues have been reported for the BPW76B
