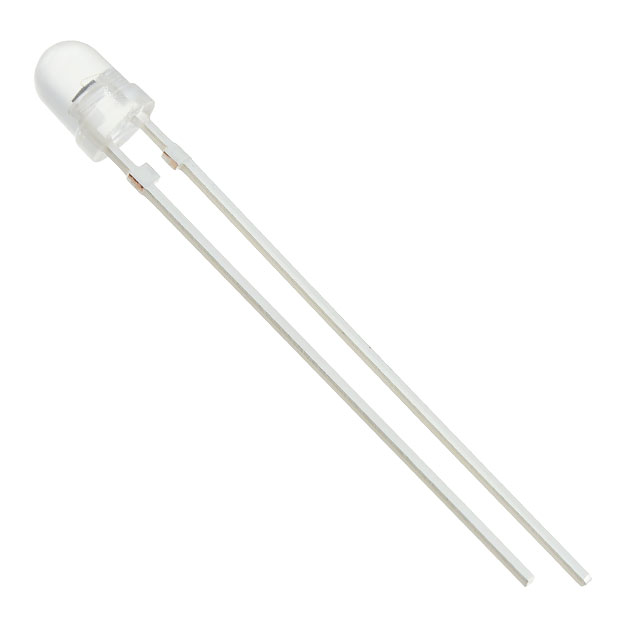

BPW85C
Phototransistors 850nm Top View Radial
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BPW85C by Vishay Semiconductor Opto Division and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

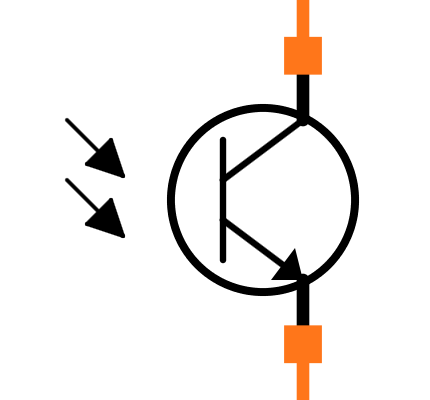

Symbol
No web preview
This Symbol is Available for

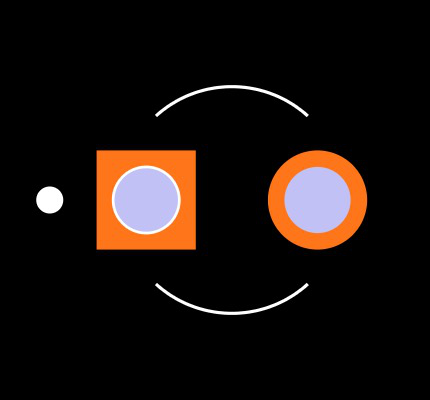

Footprint
No web preview
This Footprint is Available for

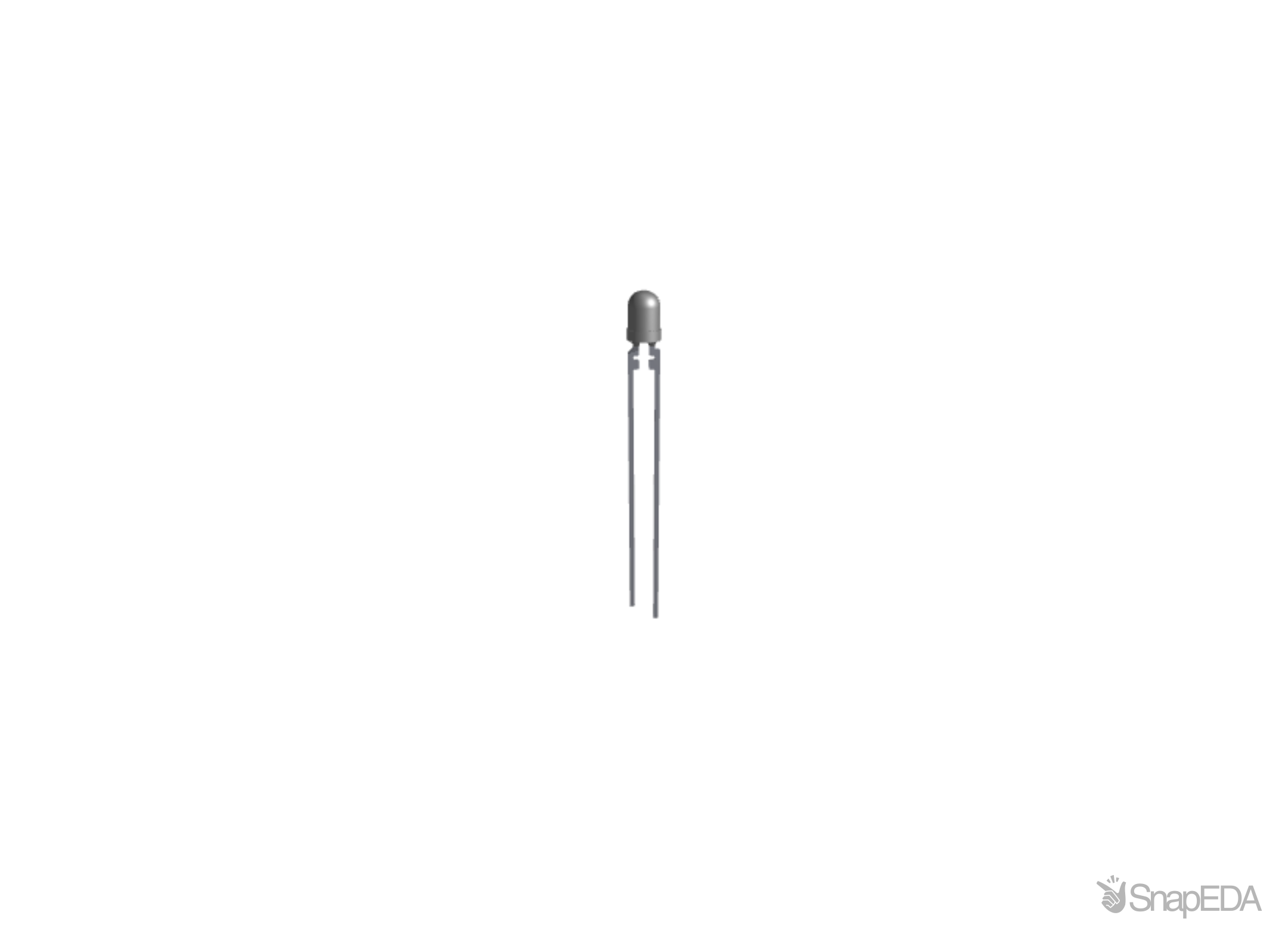

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BPW85C
| Part Name | BPW85C |
| Manufacturer | Vishay |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | NPN |
| Maximum Dark Current (A) | 200 (nA) |
| Mounting Type | Through Hole |
| Collector Current (A) | 50 (mA) |
| Typical Fall Time | 2.3 (µs) |
| Typical Rise Time | 2 (µs) |
| Maximum Light Current (A) | 8000 (µA) |
| Maximum Wavelength Detected | 1080 (nm) |
| Height | 4.5 (mm) |
| Minimum Wavelength Detected | 450 (nm) |
| Width | 3.4 (mm) |
| Length | 3.4 (mm) |
| Spectrum S Detected | Infrared, Visible Light |
| Number Of Channels | 1 |
| Package Type | 3mm (T-1) |
| Spectral Range Of Sensitivity | 450 → 1080 nm |
| Angle Of Half Sensitivity | 50 ° |
| Number Of Pins | 2 |
| Dimensions | 3.4 x 3.4 x 4.5 (mm) |
Inventory for the BPW85C by Vishay Semiconductor Opto Division from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Arrow Europe |
5,000
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Verical |
5,000
|
|
Visit Site |
No issues have been reported for the BPW85C
If you experienced any issues with the symbol or footprint, please report it.
