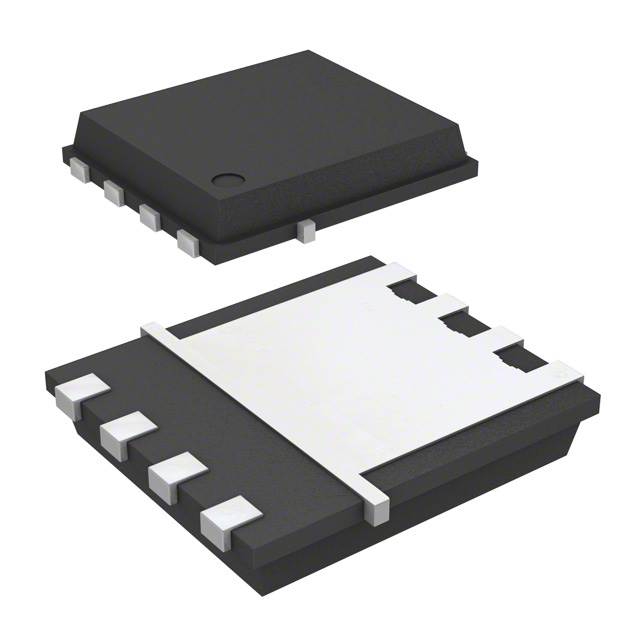

BSC010N04LS6ATMA1
N-Channel 40 V 40A (Ta), 100A (Tc) 3W (Ta), 150W (Tc) Surface Mount PG-TDSON-8-6
Availability: Out of Stock
Package Type: POWERTDFN-8

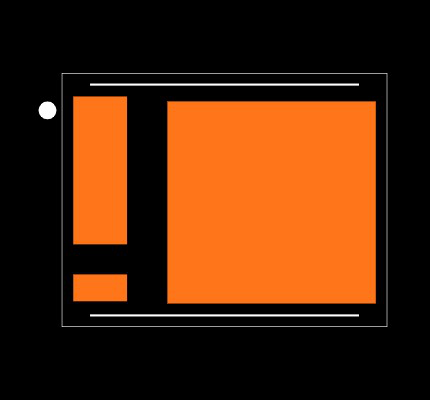

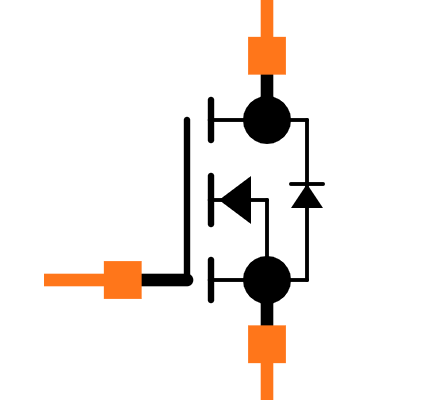

CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BSC010N04LS6ATMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

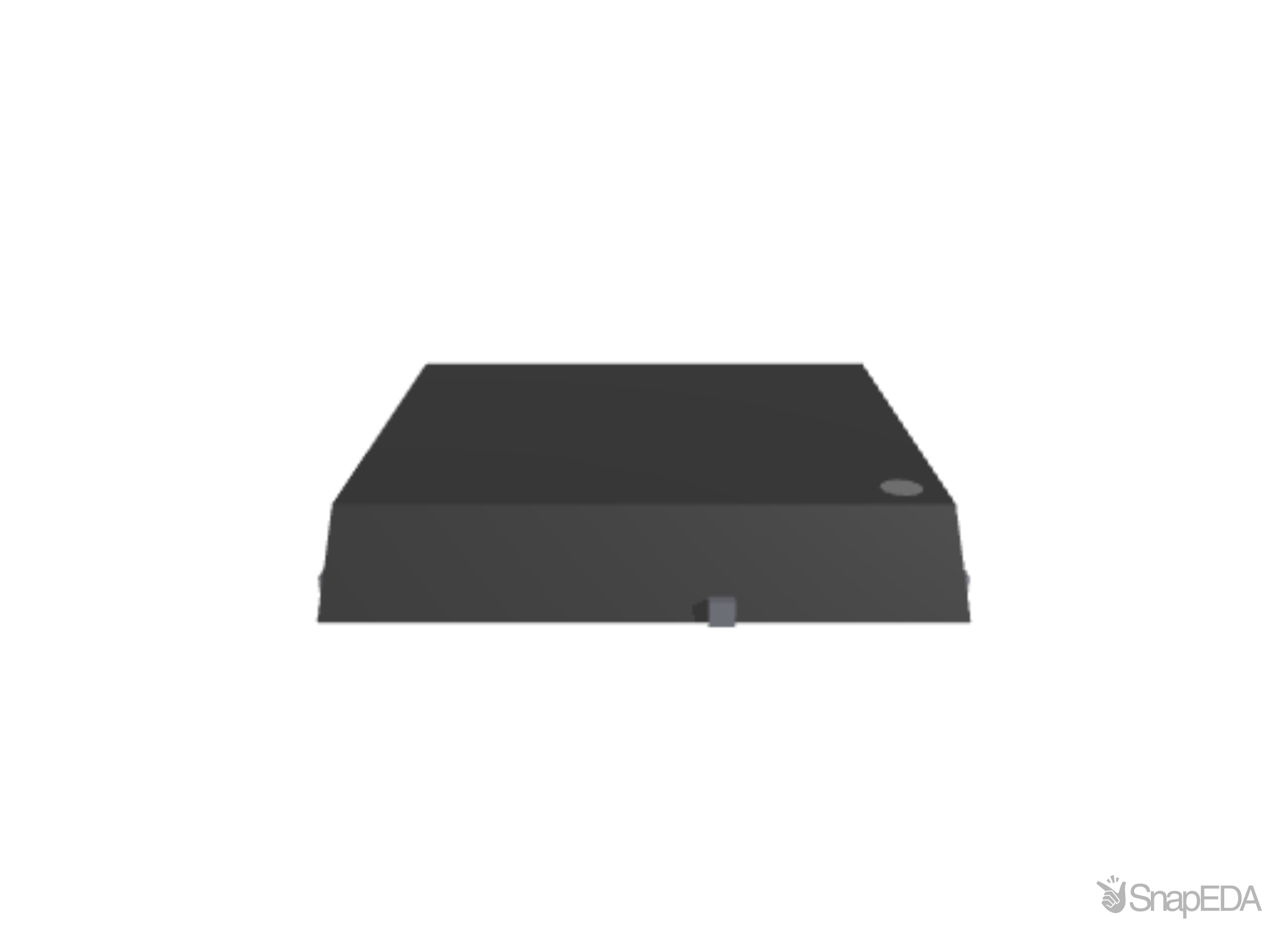

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BSC010N04LS6ATMA1
| Part Name | BSC010N04LS6ATMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 40 V |
| Maximum Continuous Drain Current (A) | 285 A |
| Mounting Type | Surface Mount |
| Series | OptiMOSâ„¢ 6 |
| Channel Type | N |
| Package Type | SuperSO8 5 x 6 |
| Number Of Elements Per Chip | 1 |
| Pin Count | 8 |
No issues have been reported for the BSC010N04LS6ATMA1
If you experienced any issues with the symbol or footprint, please report it.
