BSC011N03LS
Trans MOSFET N-CH 30V 37A 8-Pin TDSON EP T/R
Availability: In Stock
Package Type: POWERTDFN-8

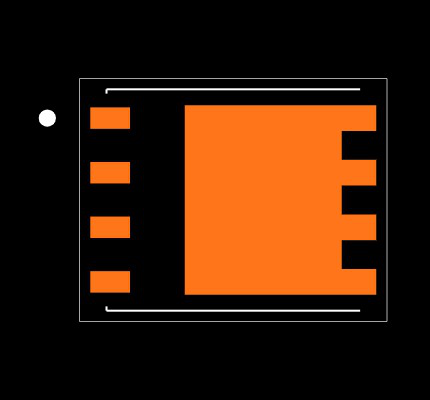

CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BSC011N03LS by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Build
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BSC011N03LS
| Part Name | BSC011N03LS |
| Manufacturer | Infineon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Drain Source Voltage (V) | 30 V |
| Maximum Continuous Drain Current (A) | 240 A |
| Mounting Type | Surface Mount |
| Series | OptiMOSâ„¢ |
| Channel Type | N |
| Package Type | SuperSO8 5 x 6 |
| Number Of Elements Per Chip | 1 |
| Pin Count | 8 |
