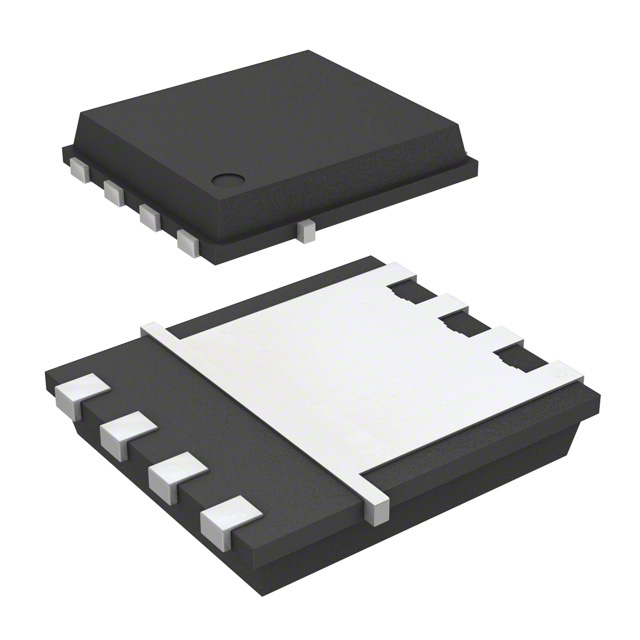

BSC030P03NS3 G

Name: BSC030P03NS3 G
Brand: Infineon

P-Channel 30 V 25.4A (Ta), 100A (Tc) 2.5W (Ta), 125W (Tc) Surface Mount PG-TDSON-8-1

Availability: In Stock

Package Type: PG-TDSON-8

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the BSC030P03NS3 G by Infineon and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

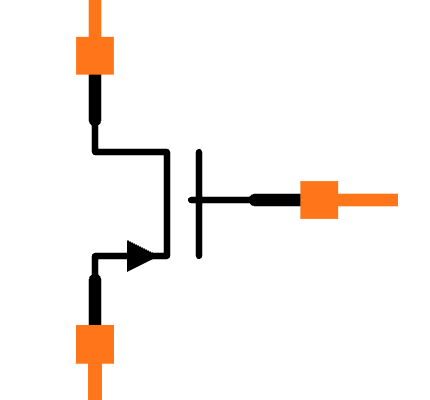

Symbol

No web preview

This Symbol is Available for

Report

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

Report

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the BSC030P03NS3 G

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the BSC030P03NS3 G

Part Name	BSC030P03NS3 G
Manufacturer	Infineon Technologies
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Maximum Drain Source Voltage (V)	30 V
Width	5.35 (mm)
Maximum Continuous Drain Current (A)	100 A
Mounting Type	Surface Mount
Maximum Gate Source Voltage (V)	-25 V, +25 V
Series	OptiMOS P
Channel Type	P
Maximum Power Dissipation	125 W
Height	1.1 (mm)
Channel Mode	Enhancement
Length	6.1 (mm)
Maximum Drain Source Resistance	4.6 mΩ
Typical Gate Charge Vgs	140 nC @ 10 V
Number Of Elements Per Chip	1
Minimum Operating Temperature	-55 °C
Forward Diode Voltage (V)	1.1 (V)
Package Type	TDSON
Transistor Material	Si
Maximum Operating Temperature	+150 °C
Pin Count	8
Transistor Configuration	Single

Inventory for the BSC030P03NS3 G by Infineon from major distributors.

Supplier	Quantity	Price	Purchase
★ Featured	20,000	465 x $0.65		Visit Site
Mouser		5,000 x $0.98		Visit Site
