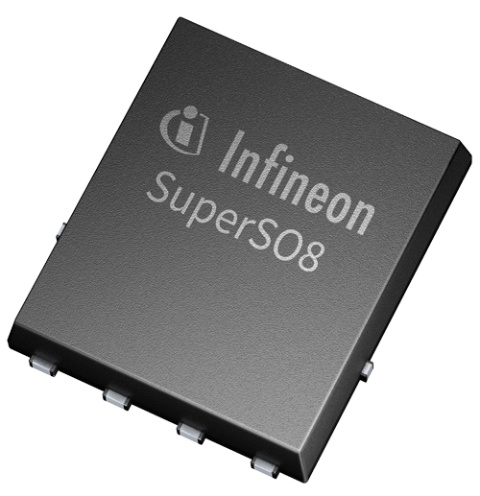

BSC037N08NS5ATMA1
Optimized for synchronous rectification | Ideal for high switching frequency | Output capacitance reduction of up to 44% | R DS(on) reduction of up to 44%
Availability: Out of Stock
Package Type: POWERTDFN-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BSC037N08NS5ATMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

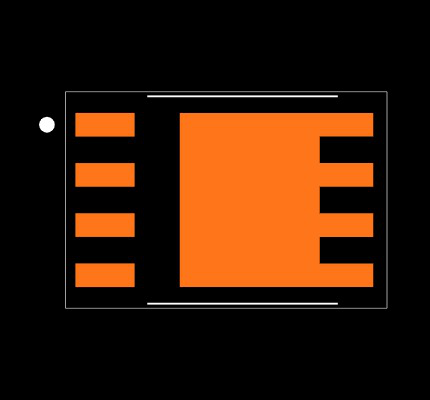

- Symbol and Footprint
- 3D Model
- Alternates

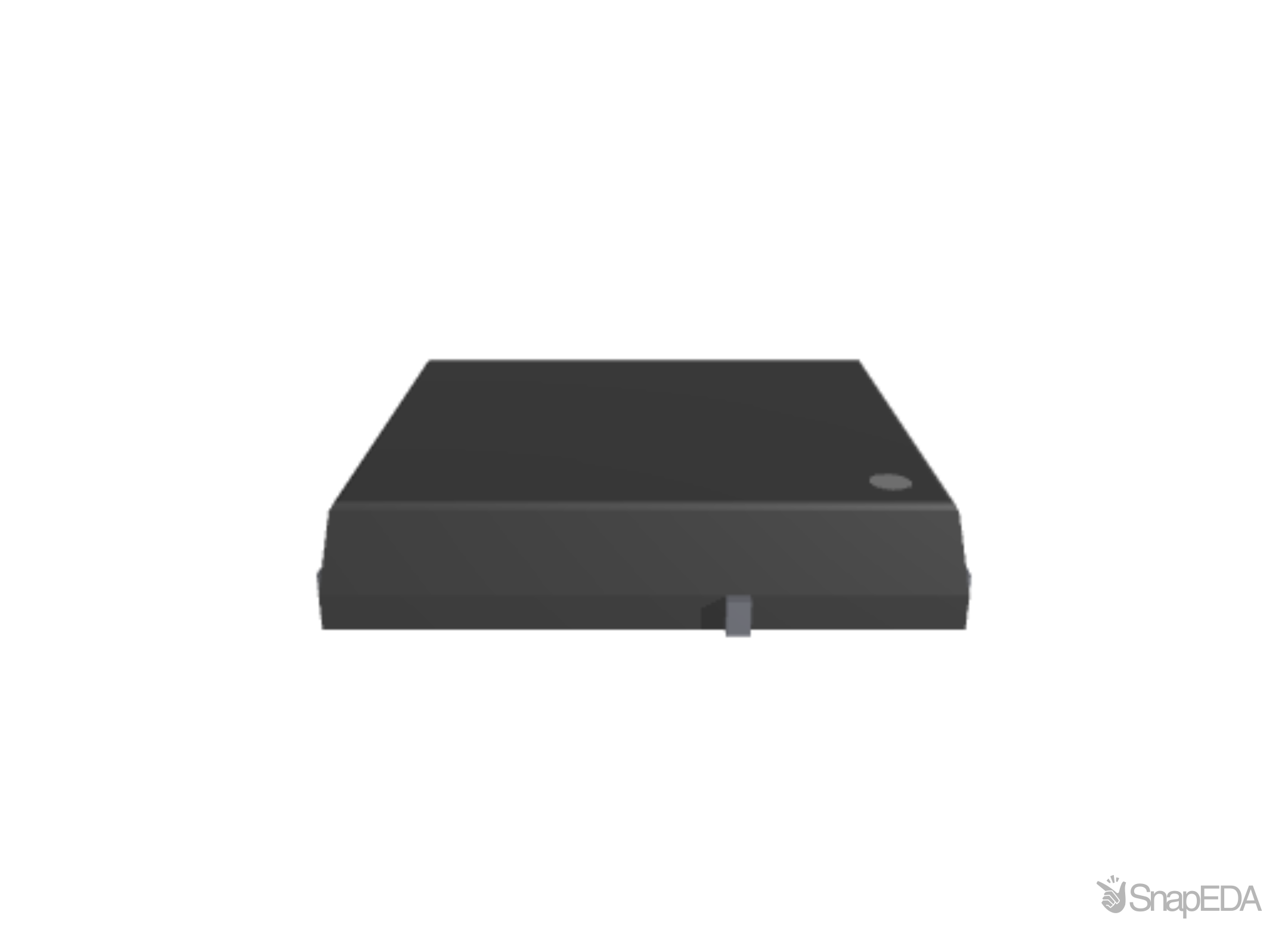

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BSC037N08NS5ATMA1
| Part Name | BSC037N08NS5ATMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/bsc037n08ns5/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 80 V |
| Channel Mode | Enhancement |
| Maximum Continuous Drain Current (A) | 131 A |
| Series | OptiMOS™ 5 |
| Channel Type | N |
| Maximum Gate Threshold Voltage (V) | 3.8 (V) |
| Package Type | SuperSO8 5 x 6 |
| Number Of Elements Per Chip | 1 |
| Pin Count | 8 |
| Mounting Type | Surface Mount |
| Transistor Material | Silicon |
| Maximum Drain Source Resistance | 0.0037 Ω |
