BSN20BKR

Name: BSN20BKR
Brand: Nexperia

N-Channel 60 V 265mA (Ta) 310mW (Ta) Surface Mount TO-236AB

Availability: Out of Stock

Package Type: SOT23-3

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the BSN20BKR by Nexperia and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

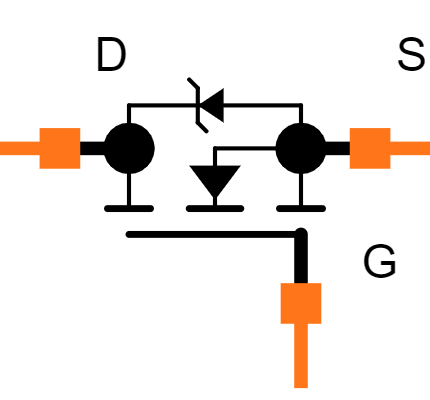

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the BSN20BKR

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the BSN20BKR

Part Name	BSN20BKR
Manufacturer	Nexperia
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Maximum Continuous Drain Current (A)	330 mA
Width	1.4 (mm)
Transistor Configuration	Single
Maximum Drain Source Voltage (V)	60 V
Maximum Gate Threshold Voltage (V)	1.4 (V)
Package Type	SOT-23
Number Of Elements Per Chip	1
Minimum Gate Threshold Voltage (V)	0.6 (V)
Maximum Operating Temperature	+150 °C
Channel Type	N
Length	3 (mm)
Typical Gate Charge Vgs	0.49 nC @ 4.5 V
Pin Count	3
Channel Mode	Enhancement
Mounting Type	Surface Mount
Maximum Power Dissipation	1.67 W
Series	BSN20BK
Maximum Gate Source Voltage (V)	-20 V, +20 V
Height	1 (mm)
Minimum Operating Temperature	-55 °C
Forward Diode Voltage (V)	1.2 (V)
Maximum Drain Source Resistance	2.8 Ω

We could not find inventory or pricing across major distributors for the BSN20BKR by Nexperia.
