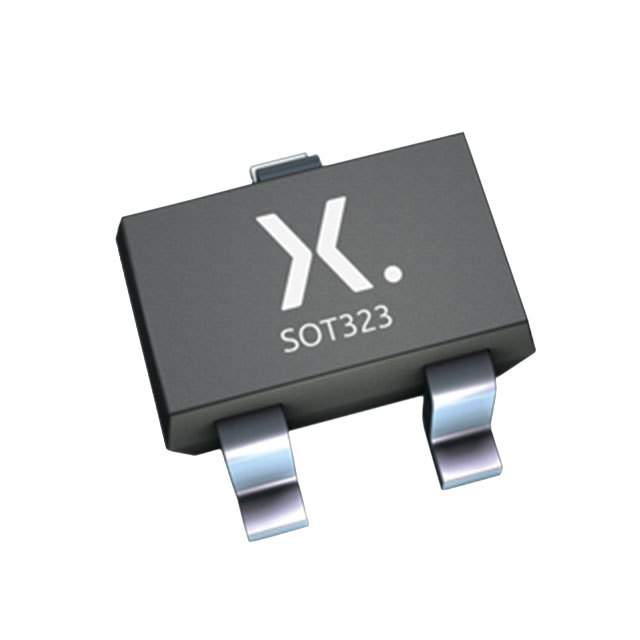

BSS138PW,115
N-Channel 60 V 320mA (Ta) 260mW (Ta), 830mW (Tc) Surface Mount SOT-323
Availability: In Stock
Package Type: SC-70-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BSS138PW,115 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for
Footprint

No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the BSS138PW,115
Part Name | BSS138PW,115 |
Manufacturer | Nexperia |
RoHS | True |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Pin Count | 3 |
Maximum Drain Source Voltage (V) | 60 V |
Typical Gate Charge @ Vgs | 0.72 nC @ 4.5 V |
Width | 1.35 (mm) |
Mounting Type | Surface Mount |
Maximum Continuous Drain Current (A) | 320 mA |
Maximum Gate Source Voltage (V) | -20 V, +20 V |
Maximum Power Dissipation | 310 mW |
Length | 2.2 (mm) |
Channel Type | N |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage (V) | 1.5 (V) |
Height | 1 (mm) |
Package Type | SOT-323 |
Number Of Elements Per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Minimum Gate Threshold Voltage (V) | 0.9 (V) |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Maximum Drain Source Resistance | 1.6 Ω |
Transistor Configuration | Single |
Inventory for the BSS138PW,115 by Nexperia from major distributors.
Supplier | Quantity | Price | Purchase | |
---|---|---|---|---|
★ Featured
![]() |
530,059
|
|
Visit Site | |
★ Featured
![]() |
233,610
|
22,390 x $0.01
|
Visit Site | |
Arrow Europe |
802
|
|
Visit Site | |
Verical |
2,001,000
|
|
Visit Site |
No issues have been reported for the BSS138PW,115
