BSZ013NE2LS5IATMA1
N-Channel 25 V 32A (Ta), 40A (Tc) 2.1W (Ta), 69W (Tc) Surface Mount PG-TSDSON-8-FL
Availability: In Stock
Package Type: SON-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BSZ013NE2LS5IATMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

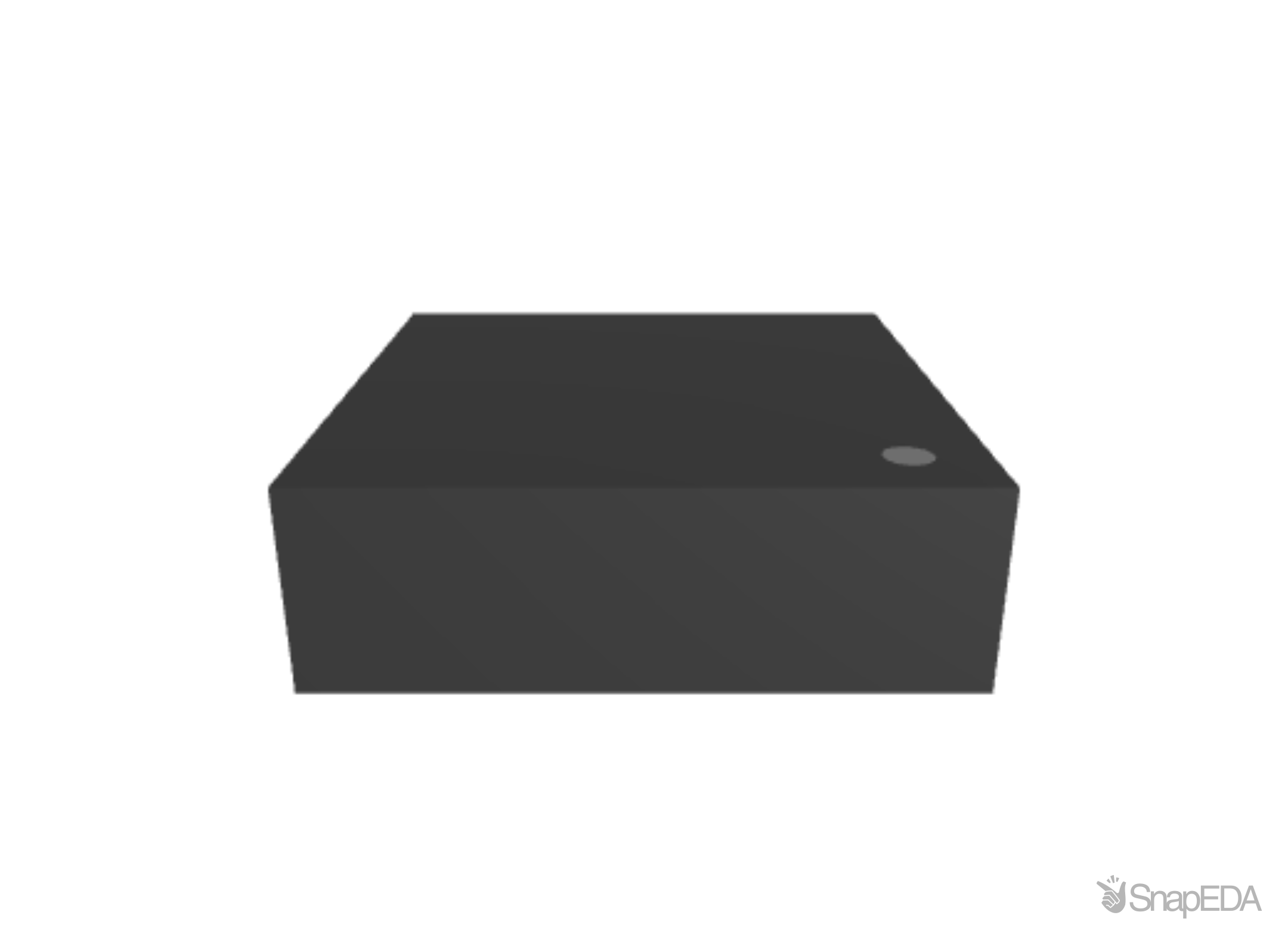

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BSZ013NE2LS5IATMA1
| Part Name | BSZ013NE2LS5IATMA1 |
| Manufacturer | Infineon |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/bsz013ne2ls5i/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 25 V |
| Package Type | PG-TSDSON-8-U03 |
| Mounting Type | Surface Mount |
| Maximum Continuous Drain Current (A) | 186 A |
| Channel Type | N |
Inventory for the BSZ013NE2LS5IATMA1 by Infineon from major distributors.
