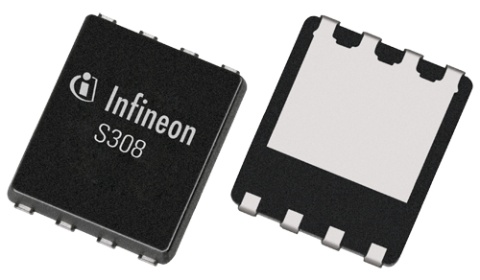

BSZ146N10LS5ATMA1
Low R DS(on) in small package | Low gate charge | Lower output charge | Logic level compatibility
Availability: Out of Stock
Package Type: SON-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BSZ146N10LS5ATMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BSZ146N10LS5ATMA1
| Part Name | BSZ146N10LS5ATMA1 |
| Manufacturer | Infineon |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/bsz146n10ls5/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 100 V |
| Channel Mode | Enhancement |
| Maximum Continuous Drain Current (A) | 40 A |
| Series | OptiMOSâ„¢ |
| Channel Type | N |
| Maximum Gate Threshold Voltage (V) | 2.3 (V) |
| Package Type | PQFN 3 x 3 |
| Number Of Elements Per Chip | 1 |
| Pin Count | 8 |
| Mounting Type | Surface Mount |
| Transistor Material | Si |
| Maximum Drain Source Resistance | 0.0146 Ω |
No issues have been reported for the BSZ146N10LS5ATMA1
If you experienced any issues with the symbol or footprint, please report it.
