BT131-600,412
TRIAC 600V 1A SOT54; Peak Repetitive Off-State Voltage, Vdrm:600V; Current Igt:7mA; RMS Current It:1A; Current Itsm @ 50Hz:13.8A; Holding Current:5mA; Voltage Vgt:1.5V; Peak Gate Power Pgm:5W; Thyristor / Triac Case Style:TO-92; No. of Pins:3; SVHC:No SVHC (18-Jun-2010); Case Style:SOT-54; Gate Trigger Current, Igt, (Q1), t2+g+:0.4mA; Termination Type:Through Hole; Thyristor/Triac Type:Triac
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BT131-600,412 by WeEn Semiconductors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

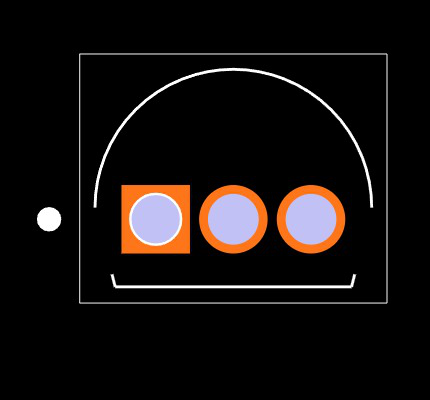

- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

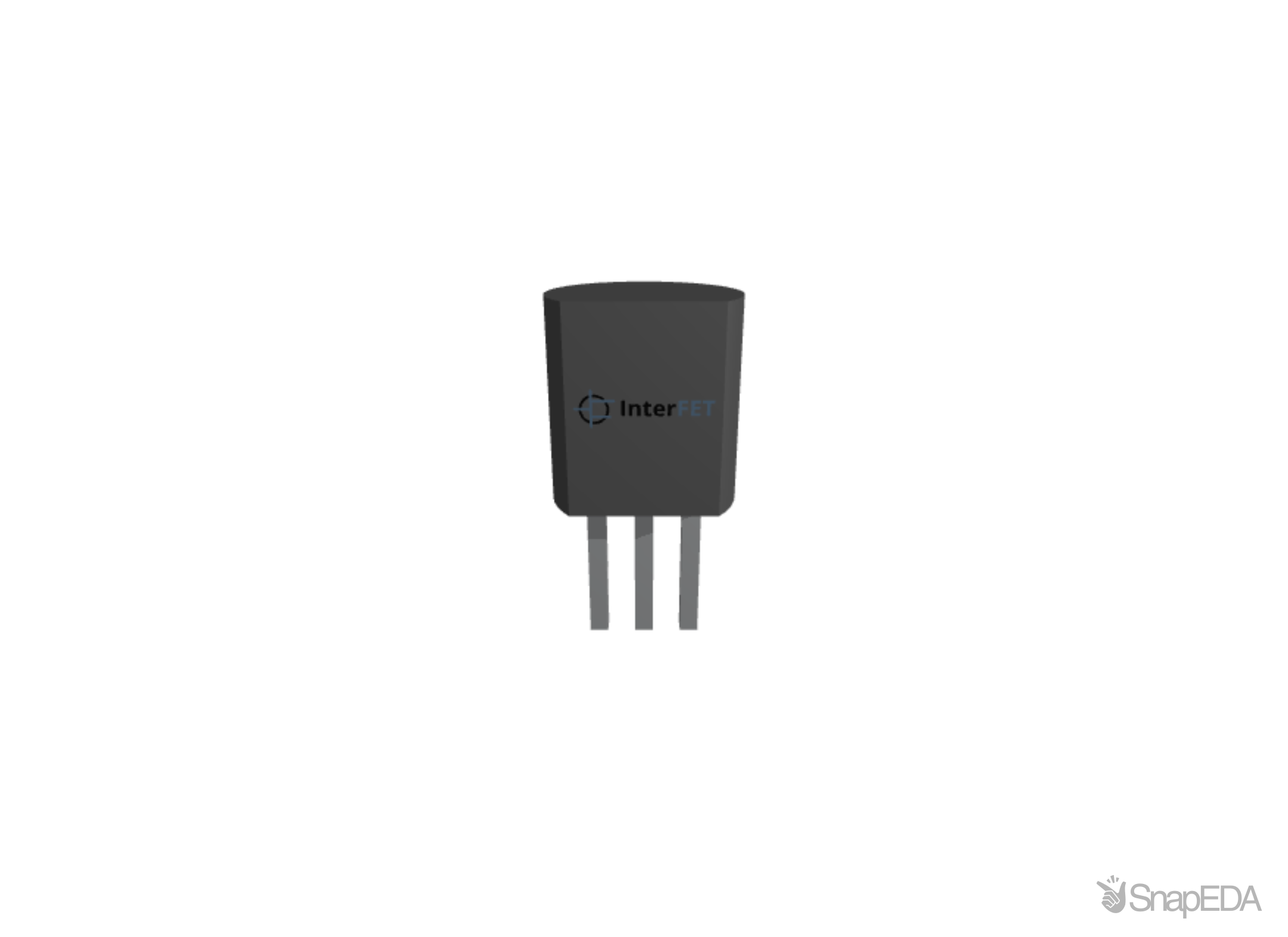

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BT131-600,412
| Part Name | BT131-600,412 |
| Manufacturer | WeEn Semiconductors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Repetitive Peak Forward Blocking Voltage (V) | 600 (V) |
| Repetitive Peak Reverse Voltage (V) | 600 (V) |
| Dimensions | 4.8 x 4.2 x 5.2 (mm) |
| Mounting Type | Through Hole |
| Surge Current Rating (A) | 13.8 (A) |
| Maximum Operating Temperature | +125 °C |
| Height | 5.2 (mm) |
| Repetitive Peak Off State Current (A) | 0.5 (mA) |
| Width | 4.2 (mm) |
| Length | 4.8 (mm) |
| Package Type | SPT |
| Minimum Operating Temperature | -40 °C |
| Maximum Holding Current (A) | 5 (mA) |
| Maximum Gate Trigger Current (A) | 7 (mA) |
| Rated Average On State Current (A) | 1 (A) |
| Peak On State Voltage (V) | 1.5 (V) |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage (V) | 1.5 (V) |
