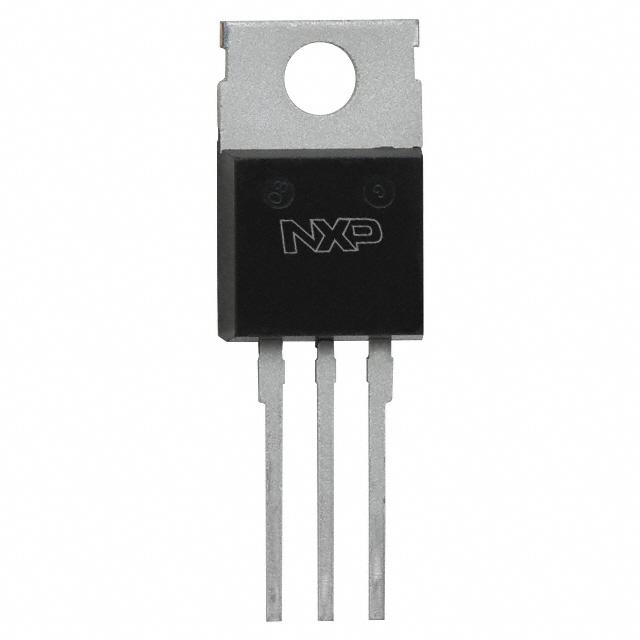

BT152-800R,127
SCR 800 V 20 A Standard Recovery Through Hole TO-220AB
Availability: In Stock
Package Type: TO-220
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BT152-800R,127 by WeEn Semiconductors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BT152-800R,127
| Part Name | BT152-800R,127 |
| Manufacturer | WeEn Semiconductors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Repetitive Peak Forward Blocking Voltage (V) | 800 (V) |
| Repetitive Peak Reverse Voltage (V) | 800 (V) |
| Maximum Gate Trigger Voltage (V) | 1.5 (V) |
| Mounting Type | Through Hole |
| Surge Current Rating (A) | 220 (A) |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off State Current (A) | 1 (mA) |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -40 °C |
| Maximum Holding Current (A) | 60 (mA) |
| Maximum Gate Trigger Current (A) | 32 (mA) |
| Rated Average On State Current (A) | 13 (A) |
| Thyristor Type | SCR |
| Peak On State Voltage (V) | 1.75 (V) |
| Pin Count | 3 |
| Dimensions | 10.3 x 4.7 x 9.4 (mm) |
Inventory for the BT152-800R,127 by WeEn Semiconductors from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
6,000 x $0.47
|
Visit Site | |
|
★ Featured
|
3,590
|
665 x $0.52
|
Visit Site |
No issues have been reported for the BT152-800R,127
