BTA16-600B
TRIAC Alternistor - Snubberless 600 V 16 A Through Hole TO-220
Availability: In Stock
Package Type: TO-220-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BTA16-600B by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

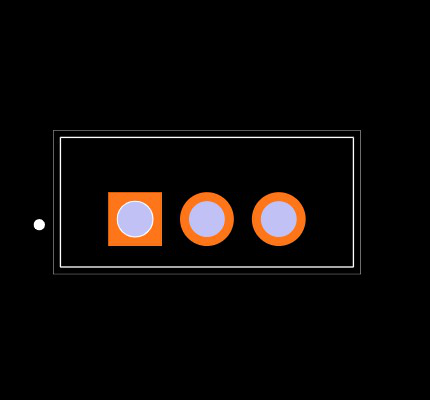

Footprint
No web preview
This Footprint is Available for

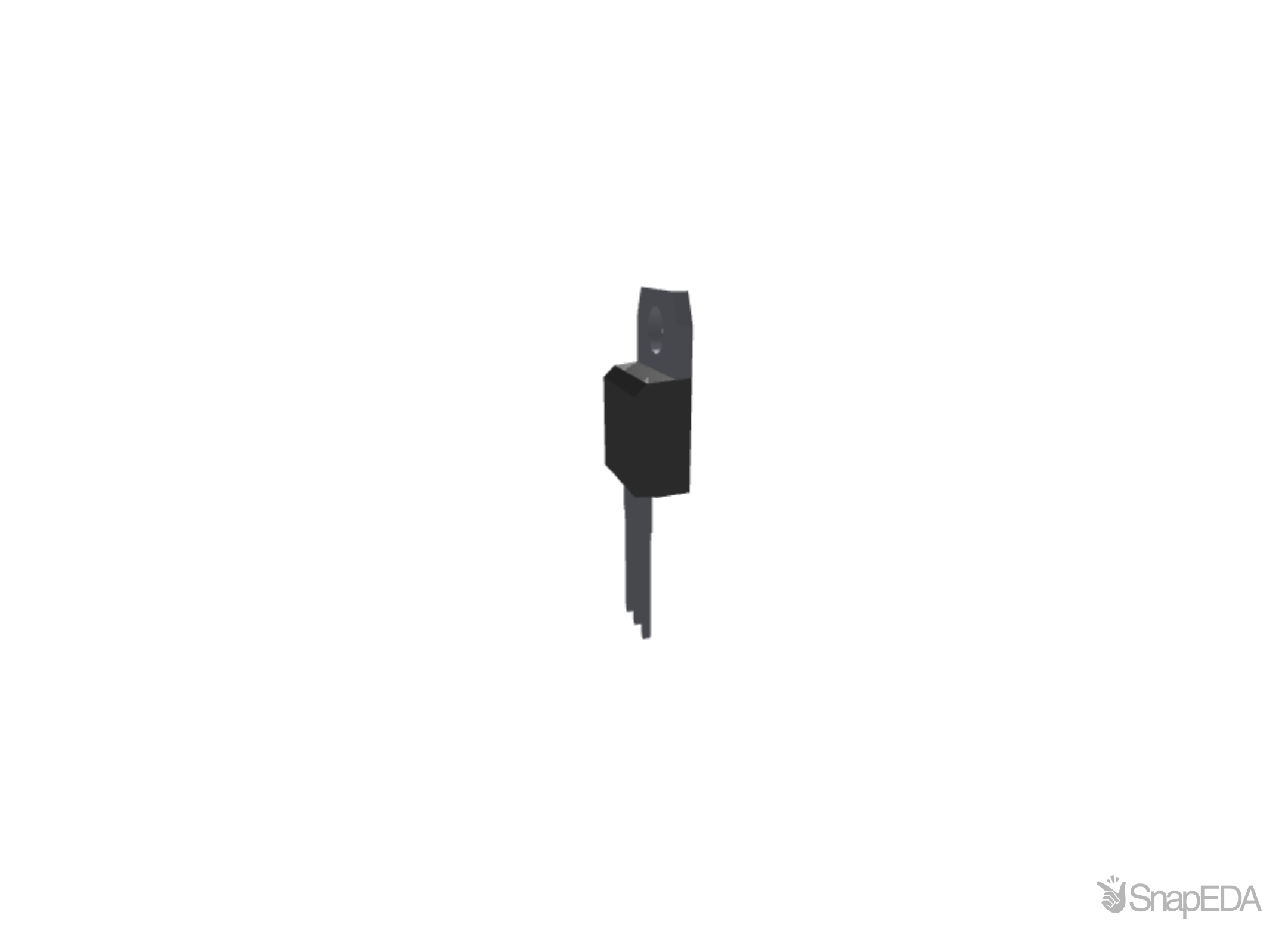

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BTA16-600B
| Part Name | BTA16-600B |
| Manufacturer | STMicroelectronics |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Repetitive Peak Forward Blocking Voltage (V) | 600 (V) |
| Repetitive Peak Reverse Voltage (V) | 600 (V) |
| Dimensions | 10.4 x 4.6 x 9.3 (mm) |
| Mounting Type | Through Hole |
| Surge Current Rating (A) | 168 (A) |
| Maximum Operating Temperature | +125 °C |
| Height | 9.3 (mm) |
| Repetitive Peak Off State Current (A) | 0.005 (mA) |
| Width | 4.6 (mm) |
| Length | 10.4 (mm) |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -40 °C |
| Maximum Holding Current (A) | 50 (mA) |
| Maximum Gate Trigger Current (A) | 50 (mA) |
| Rated Average On State Current (A) | 16 (A) |
| Peak On State Voltage (V) | 1.55 (V) |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage (V) | 1.3 (V) |
Inventory for the BTA16-600B by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,980
|
1,135 x $0.26
|
Visit Site | |
| Conrad |
551
|
|
Visit Site |
No issues have been reported for the BTA16-600B
