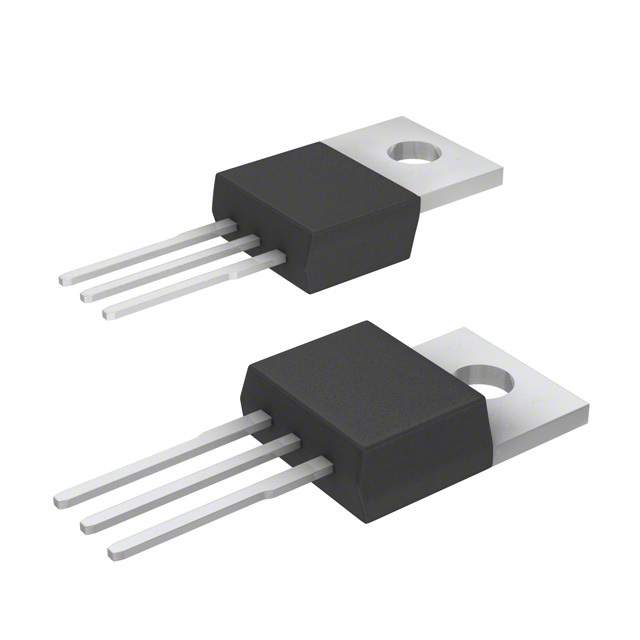

BTA16-600CW3G
TRIAC Standard 600 V 16 A Through Hole TO-220AB
Availability: Out of Stock
Package Type: TO-220
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BTA16-600CW3G by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

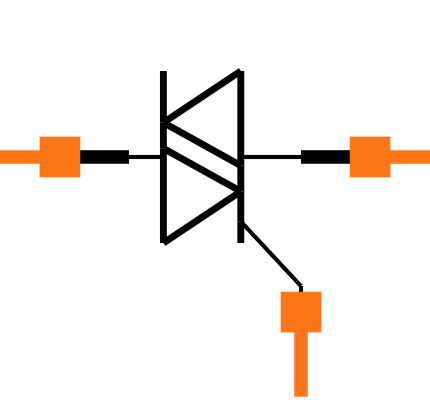

Symbol
No web preview
This Symbol is Available for

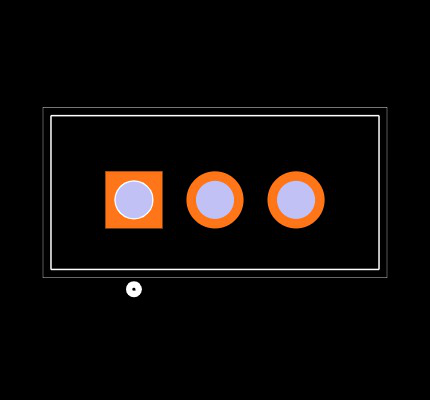

Footprint
No web preview
This Footprint is Available for

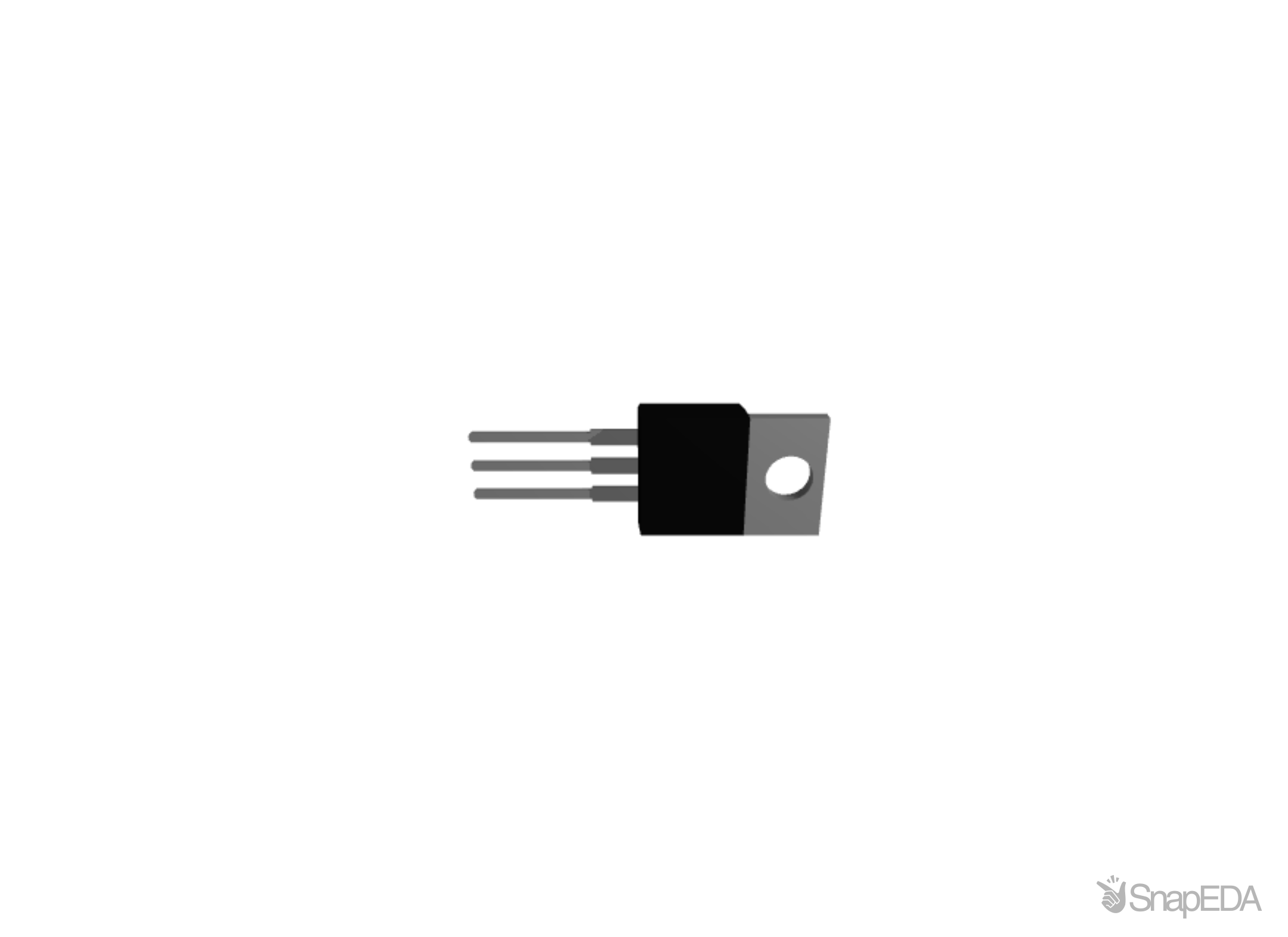

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BTA16-600CW3G
| Part Name | BTA16-600CW3G |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Repetitive Peak Forward Blocking Voltage (V) | 800 (V) |
| Repetitive Peak Reverse Voltage (V) | 600 (V) |
| Dimensions | 10.28 x 4.82 x 15.75 (mm) |
| Mounting Type | Through Hole |
| Surge Current Rating (A) | 170 (A) |
| Peak On State Voltage (V) | 1.55 (V) |
| Height | 15.75 (mm) |
| Width | 4.82 (mm) |
| Length | 10.28 (mm) |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40 °C |
| Maximum Holding Current (A) | 50 (mA) |
| Maximum Gate Trigger Current (A) | 35 (mA) |
| Rated Average On State Current (A) | 16 (A) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage (V) | 1.7 (V) |
No issues have been reported for the BTA16-600CW3G
If you experienced any issues with the symbol or footprint, please report it.
