BTN8982TA
Motor / Motion / Ignition Controllers & Drivers TRILITH IC / NOVALITH IC
Availability: In Stock
Package Type: TO-263-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BTN8982TA by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

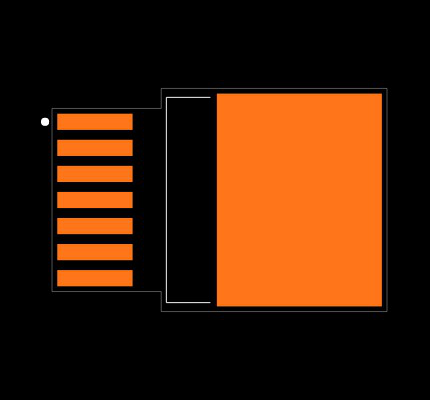

Footprint
No web preview
This Footprint is Available for

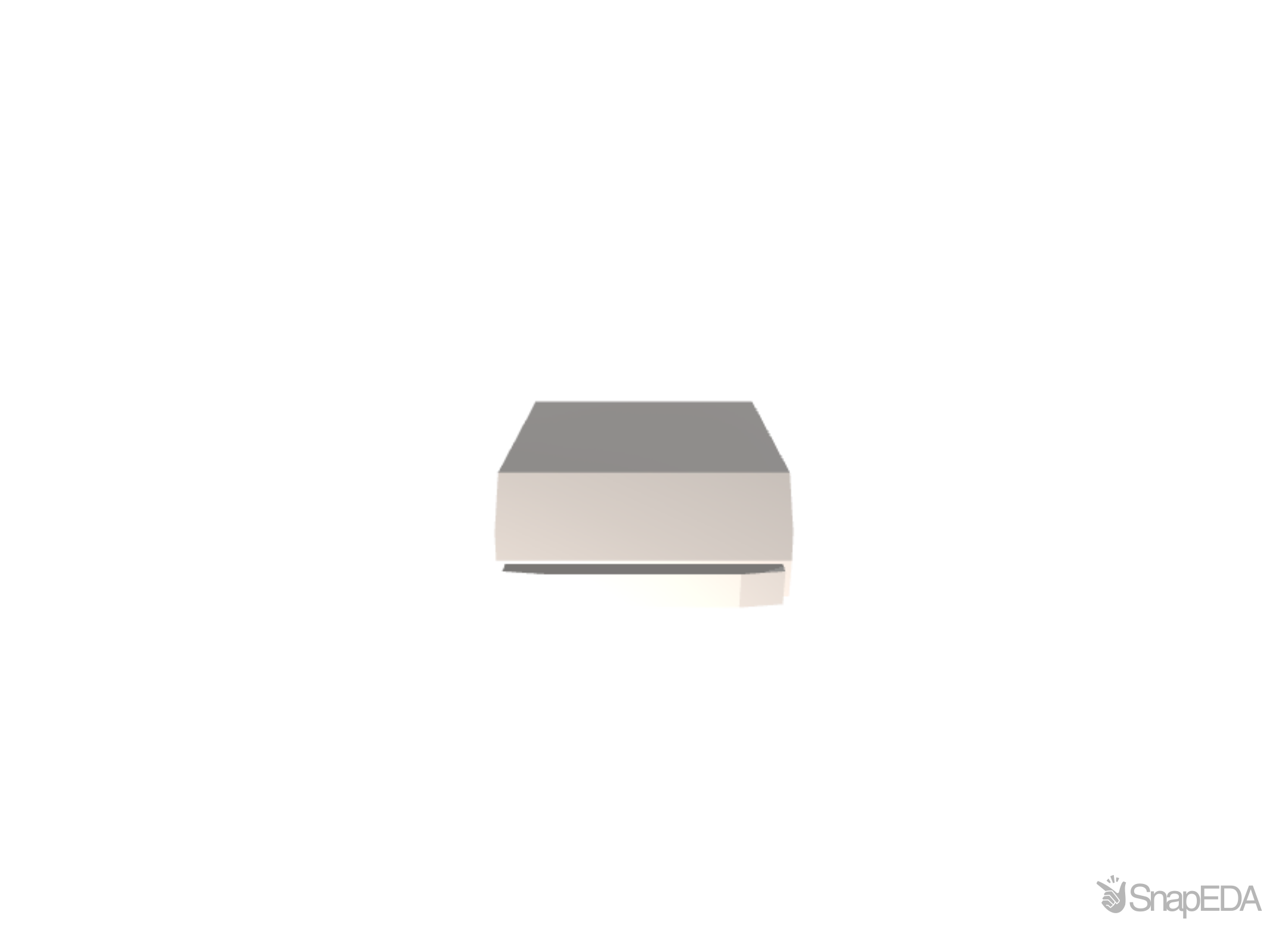

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BTN8982TA
| Part Name | BTN8982TA |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 10.3 x 4.4 (mm) |
| Maximum Operating Supply Voltage (V) | 18 V |
| Minimum Operating Supply Voltage (V) | 8 V |
| Maximum Collector Emitter Voltage (V) | 40 V |
| Maximum Igbt Collector Current (A) | 55 (A) |
| Height | 4.4 (mm) |
| Width | 10.3 (mm) |
| Length | 10 (mm) |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Motor Type | BLDC |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 7 |
Inventory for the BTN8982TA by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
14,799
|
|
Visit Site | |
|
★ Featured
|
3,639
|
|
Visit Site | |
|
★ Featured
|
10,200
|
93 x $3.26
|
Visit Site | |
| RS UK |
78
|
2 x $7.25
|
Visit Site |
No issues have been reported for the BTN8982TA
If you experienced any issues with the symbol or footprint, please report it.
