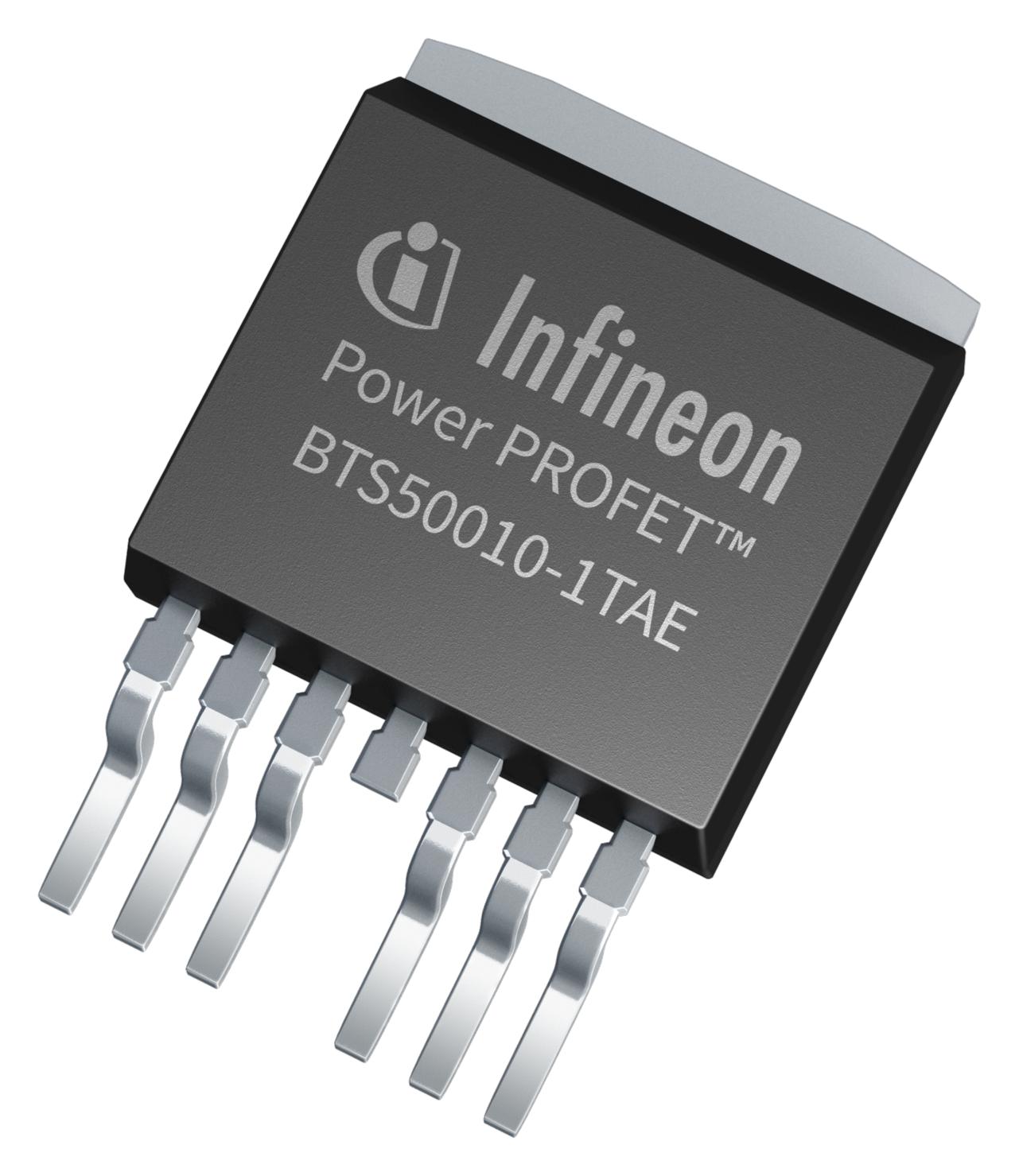

BTS500101TAEATMA1
One high-side power output | Output peak current up to 250A | Wide range logic input signal (3.3 V, 5 V, 12 V) | Embedded diagnostic and protection features
Availability: In Stock
Package Type: TO-263-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BTS500101TAEATMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BTS500101TAEATMA1
| Part Name | BTS500101TAEATMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/smart-low-side-high-side-switches/automotive-smart-high-side-switch-profet/power-profet/bts50010-1tae/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Operating Current (A) | 0.003 (A) |
| Power Switch Type | High Side |
| Maximum Operating Supply Voltage (V) | 18 V |
| Number Of Outputs | 3 |
| Package Type | PG-TO263-7 |
| Power Switch Topology | High Side |
| Switch On Resistance | 2.1 (MΩ) |
| Number Of Channels | 1 |
| Pin Count | 7 |
