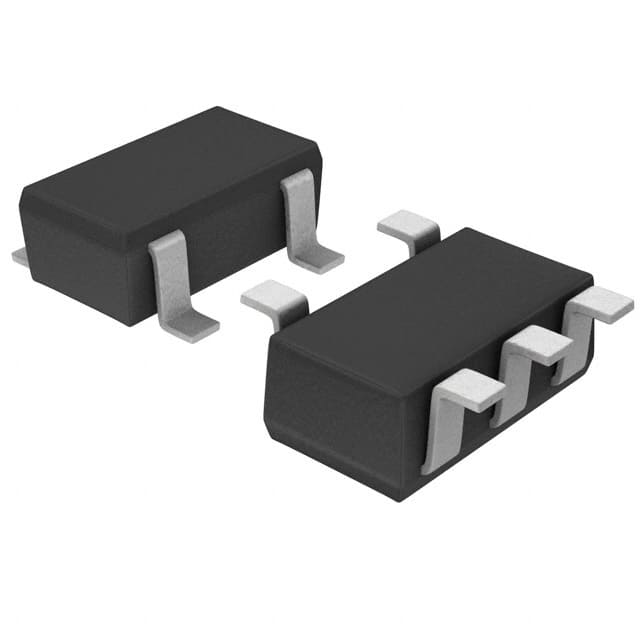

BU7250G-TR
Comparator Single R-R I/P }2.75V/5.5V 5-Pin SSOP T/R
Availability: Out of Stock
Package Type: SSOP-5
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BU7250G-TR by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BU7250G-TR
| Part Name | BU7250G-TR |
| Manufacturer | Rohm |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Typical Dual Supply Voltage (V) | ±0.9 → ±2.75 (V) |
| Comparator Type | Low Current CMOS |
| Dimensions | 2.9 x 1.6 x 1.1 (mm) |
| Mounting Type | Surface Mount |
| Typical Psrr | 80 (dB) |
| Power Supply Type | Dual, Single |
| Typical Cmrr | 80 (dB) |
| Length | 2.9 (mm) |
| Output Type | Open Drain |
| Height | 1.1 (mm) |
| Width | 1.6 (mm) |
| Typical Single Supply Voltage (V) | 1.8 → 5.5 V |
| Package Type | SSOP |
| Number Of Channels Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Typical Response Time | 0.75 (µs) |
| Typical Voltage Gain (V) | 90 dB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 5 |
