BZX84-C3V0,215
Zener Diode 3 V 250 mW ±5% Surface Mount TO-236AB
Availability: Out of Stock
Package Type: SOT23-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BZX84-C3V0,215 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

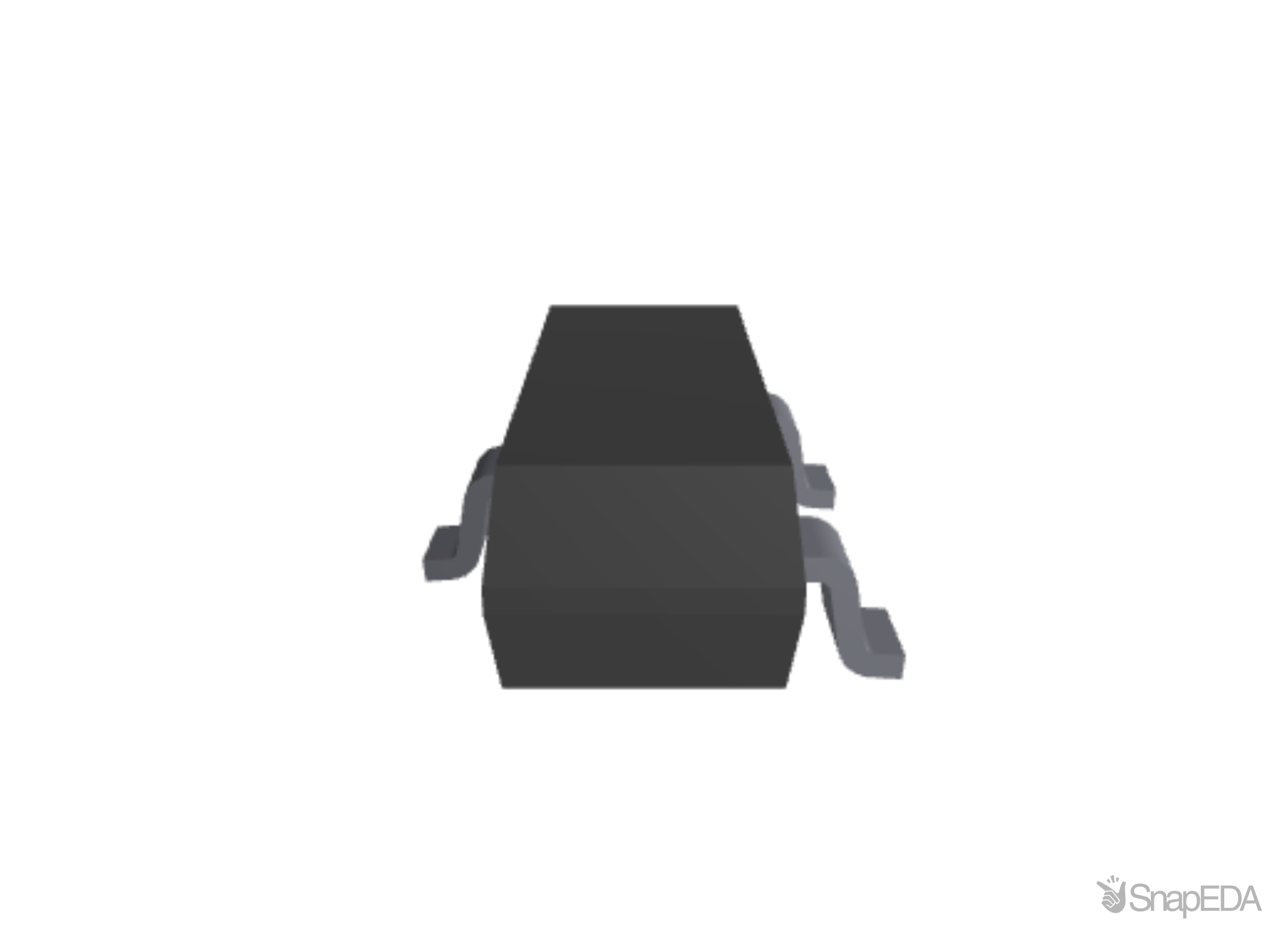

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BZX84-C3V0,215
| Part Name | BZX84-C3V0,215 |
| Manufacturer | Nexperia |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Nominal Zener Voltage (V) | 3 (V) |
| Dimensions | 3 x 1.4 x 1 (mm) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Typical Voltage Temperature Coefficient (V) | -2.1 (mV/°C) |
| Maximum Reverse Leakage Current (A) | 10 (µA) |
| Maximum Zener Impedance | 95 (Ω) |
| Zener Type | Voltage Regulator |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Package Type | SOT-23 (TO-236AB) |
| Zener Voltage Tolerance (V) | 5 (%) |
| Maximum Operating Temperature | +150 °C |
| Diode Configuration | Single |
| Pin Count | 3 |
| Test Current (A) | 5 (mA) |
