BZX84C3V9
Zener Diode 3.9 V 225 mW ±5% Surface Mount SOT-23-3 (TO-236)
Availability: Out of Stock
Package Type: SOT-23-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BZX84C3V9 by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

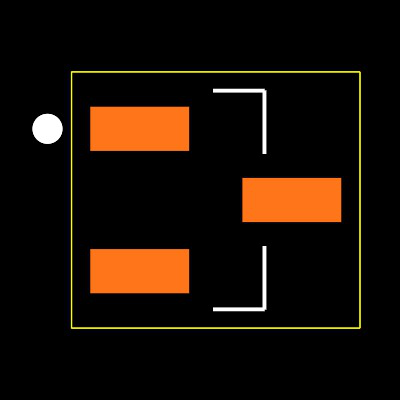

Footprint
No web preview
This Footprint is Available for

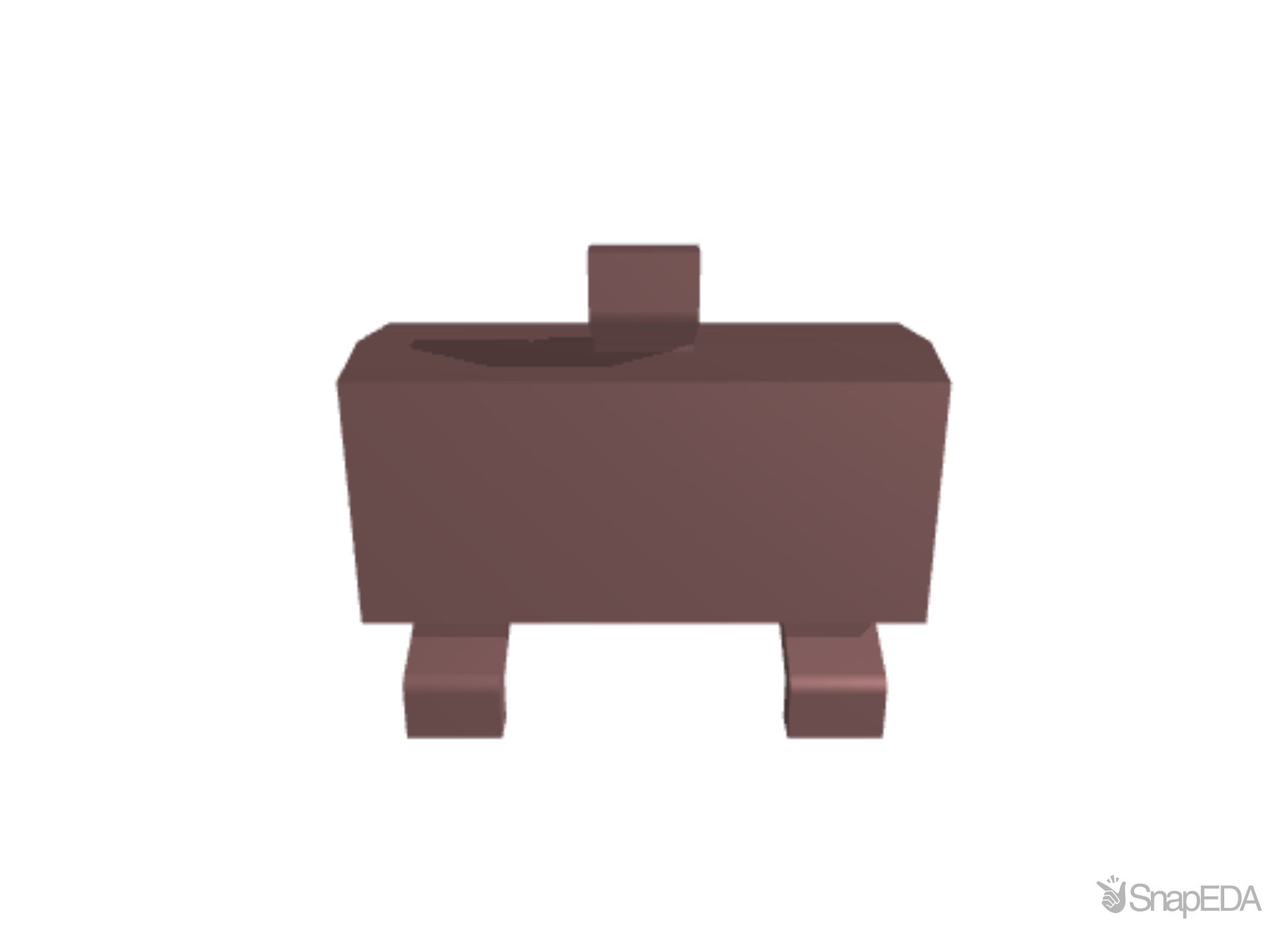

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BZX84C3V9
| Part Name | BZX84C3V9 |
| Manufacturer | ON |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Nominal Zener Voltage (V) | 4.7 (V) |
| Dimensions | 2.92 x 1.3 x 0.93 (mm) |
| Mounting Type | Surface Mount |
| Maximum Zener Impedance | 90 (Ω) |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current (A) | 5 (µA) |
| Maximum Power Dissipation | 350 mW |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Zener Voltage Tolerance (V) | 5 (%) |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Test Current (A) | 5 (mA) |
No issues have been reported for the BZX84C3V9
