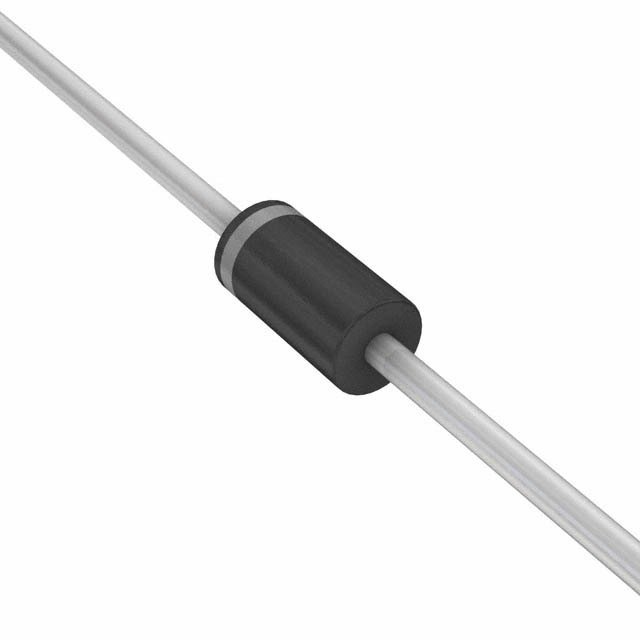

BZX85C5V1-TAP
Zener Diode 5.1 V 1.3 W ±5% Through Hole DO-204AL (DO-41)
Availability: Out of Stock
Package Type: DO-41
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BZX85C5V1-TAP by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

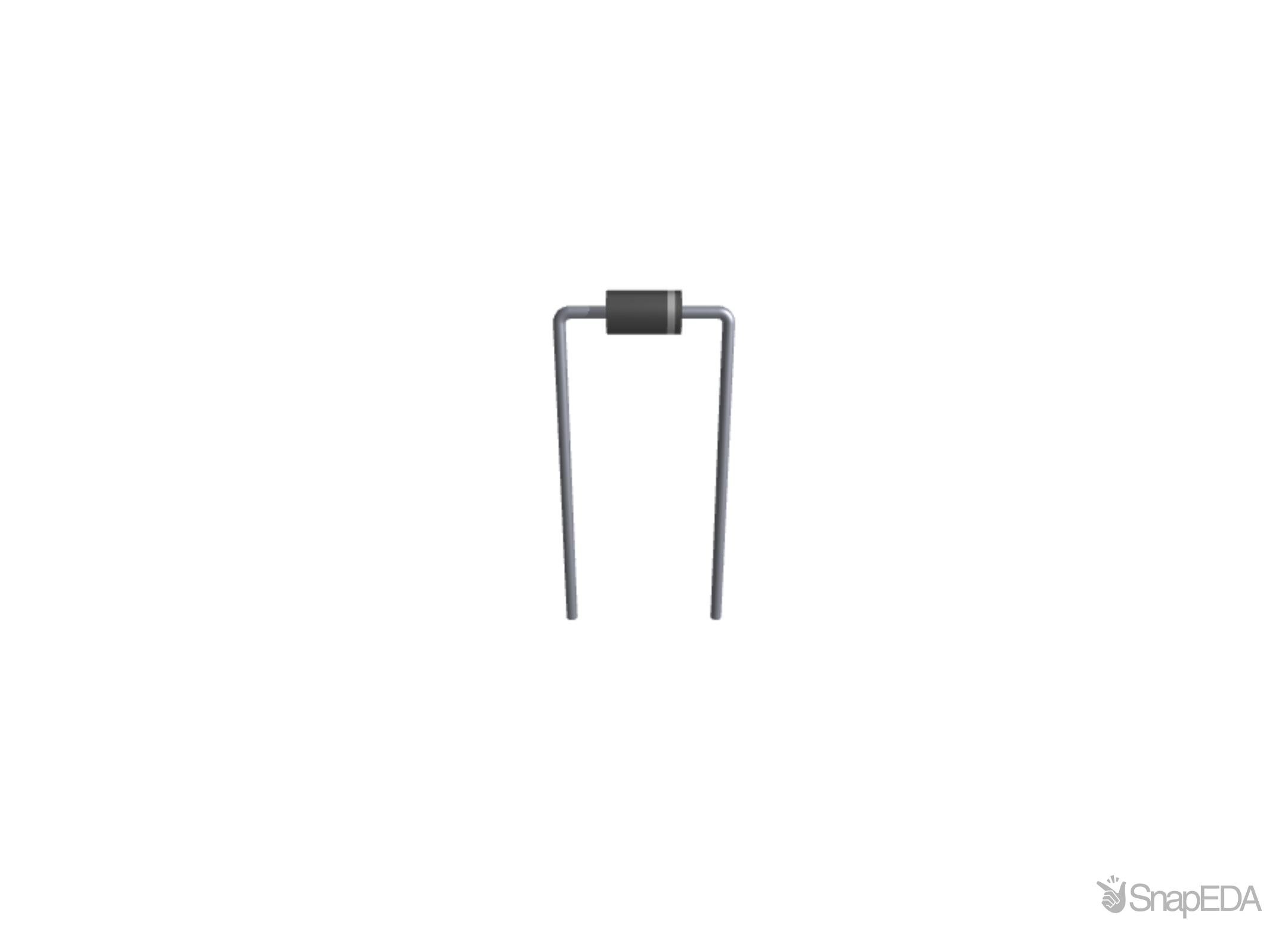

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BZX85C5V1-TAP
| Part Name | BZX85C5V1-TAP |
| Manufacturer | Vishay Semiconductor |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Nominal Zener Voltage (V) | 5.1 (V) |
| Dimensions | 4.1 x 2.6 x 2.6 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 1.3 W |
| Typical Voltage Temperature Coefficient (V) | 0.015 (%/°C) |
| Maximum Reverse Leakage Current (A) | 1 (µA) |
| Maximum Zener Impedance | 10 (Ω) |
| Zener Type | Voltage Regulator |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Package Type | DO-41 |
| Zener Voltage Tolerance (V) | 6 (%) |
| Maximum Operating Temperature | +175 °C |
| Diode Configuration | Single |
| Pin Count | 2 |
| Test Current (A) | 45 (mA) |
No issues have been reported for the BZX85C5V1-TAP
