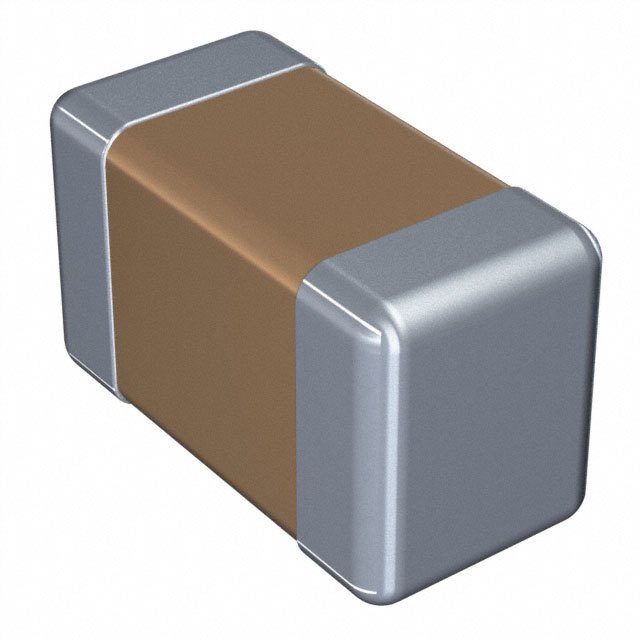

C0603C103KARACAUTO
10000 pF ±10% 250V Ceramic Capacitor X7R 0603 (1608 Metric)
Availability: In Stock
Package Type: 603-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C0603C103KARACAUTO by KEMET and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C0603C103KARACAUTO
| Part Name | C0603C103KARACAUTO |
| Manufacturer | KEMET |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Suppression Class | Class II |
| Dimensions | 1.6 x 0.8 x 0.8 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 0603 (1608M) |
| Series | C |
| Depth | 0.8 (mm) |
| Height | 0.8 (mm) |
| Capacitance | 10 (nF) |
| Length | 1.6 (mm) |
| Voltage (V) | 250 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Terminal Type | Solder |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±10 (%) |
| Automotive Standard | AEC-Q200 |
Inventory for the C0603C103KARACAUTO by KEMET from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
16,136
|
|
Visit Site | |
| Verical |
23
|
23 x $0.19
|
Visit Site |
No issues have been reported for the C0603C103KARACAUTO
