C0805C106K9PACTU

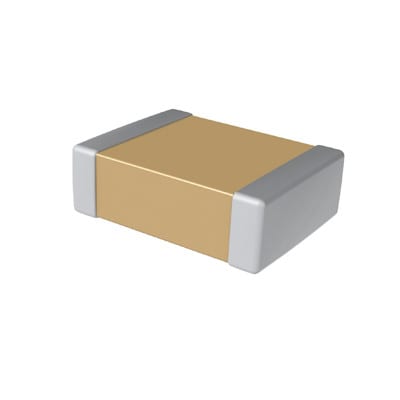

Capacitor;Ceramic;Cap;10.0uF;Tol 10%;SMT;Vol-Rtg 6.3V;High Cap | KEMET C0805C106K9PACTU
Availability: Out of Stock
Package Type: 0805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C0805C106K9PACTU by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

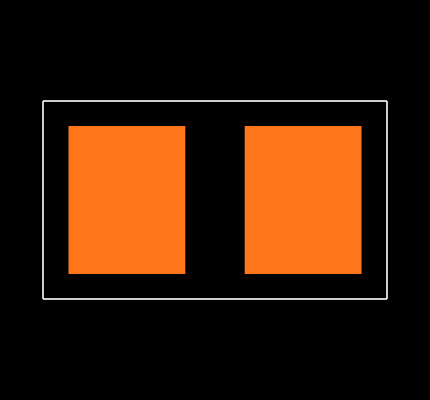

Footprint
No web preview
This Footprint is Available for

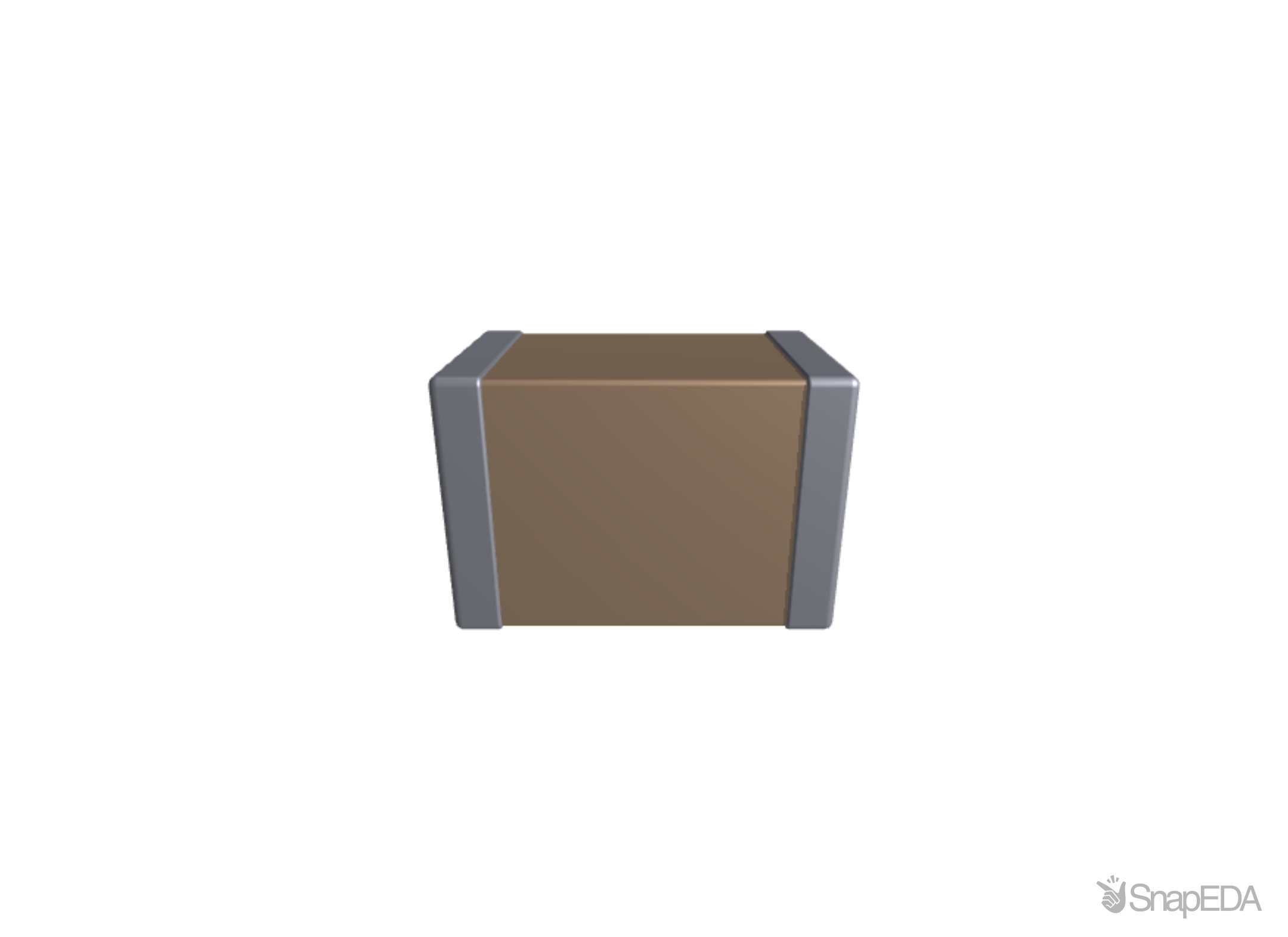

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C0805C106K9PACTU
| Part Name | C0805C106K9PACTU |
| Manufacturer | KEMET |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2 x 1.25 x 1.25 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±10 (%) |
| Package Case | 0805 (2012M) |
| Series | C |
| Length | 2 (mm) |
| Height | 1.25 (mm) |
| Capacitance | 10 (µF) |
| Depth | 1.25 (mm) |
| Voltage (V) | 6.3 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Dielectric | X5R |
