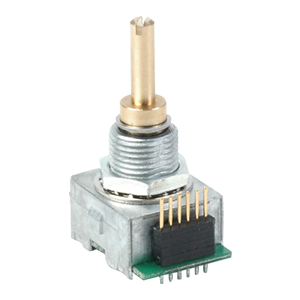

C14D32N-F3
15 mm, 32 PPR, 6.35 mm Metal Shaft, 4.75 ~ 5.25 Vdc, Vertical PCB Termination, 2-Bit Optical Panel Mount Incremental Encoder
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C14D32N-F3 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

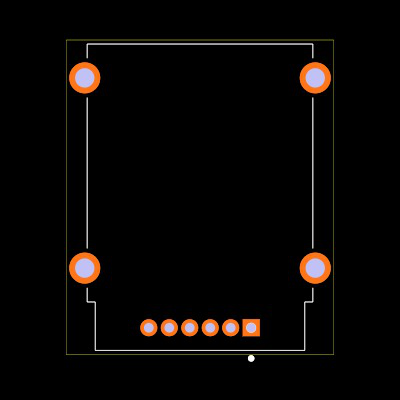

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C14D32N-F3
| Part Name | C14D32N-F3 |
| Manufacturer | Same Sky |
| Resolution (PPR) | 32 |
| Push Switch | No |
| Orientation | Vertical |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/c14d32n-f3 |
| Input Voltage (Vdc) (V) | 4.75 ~ 5.25 |
| Encoder Type | Incremental |
| Output Type | Open Collector |
| Detent | Yes |
| Package Type | Panel Mount |
| Shaft (Bore) Ø (mm) | 6, 6.35 |
| Shaft Length (mm) | 17.5 |
| Termination | PCB Pins |
| Operating Temp. (°C) | -10 ~ 70 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the C14D32N-F3 by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
250 x $28.14
|
Visit Site |
No issues have been reported for the C14D32N-F3
