C315C474K5R5TA
Capacitor, Ceramic, Cap .47uF, Tol 10%, Radial, 50V, Dielectric X7R | KEMET C315C474K5R5TA
Availability: In Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C315C474K5R5TA by KEMET and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

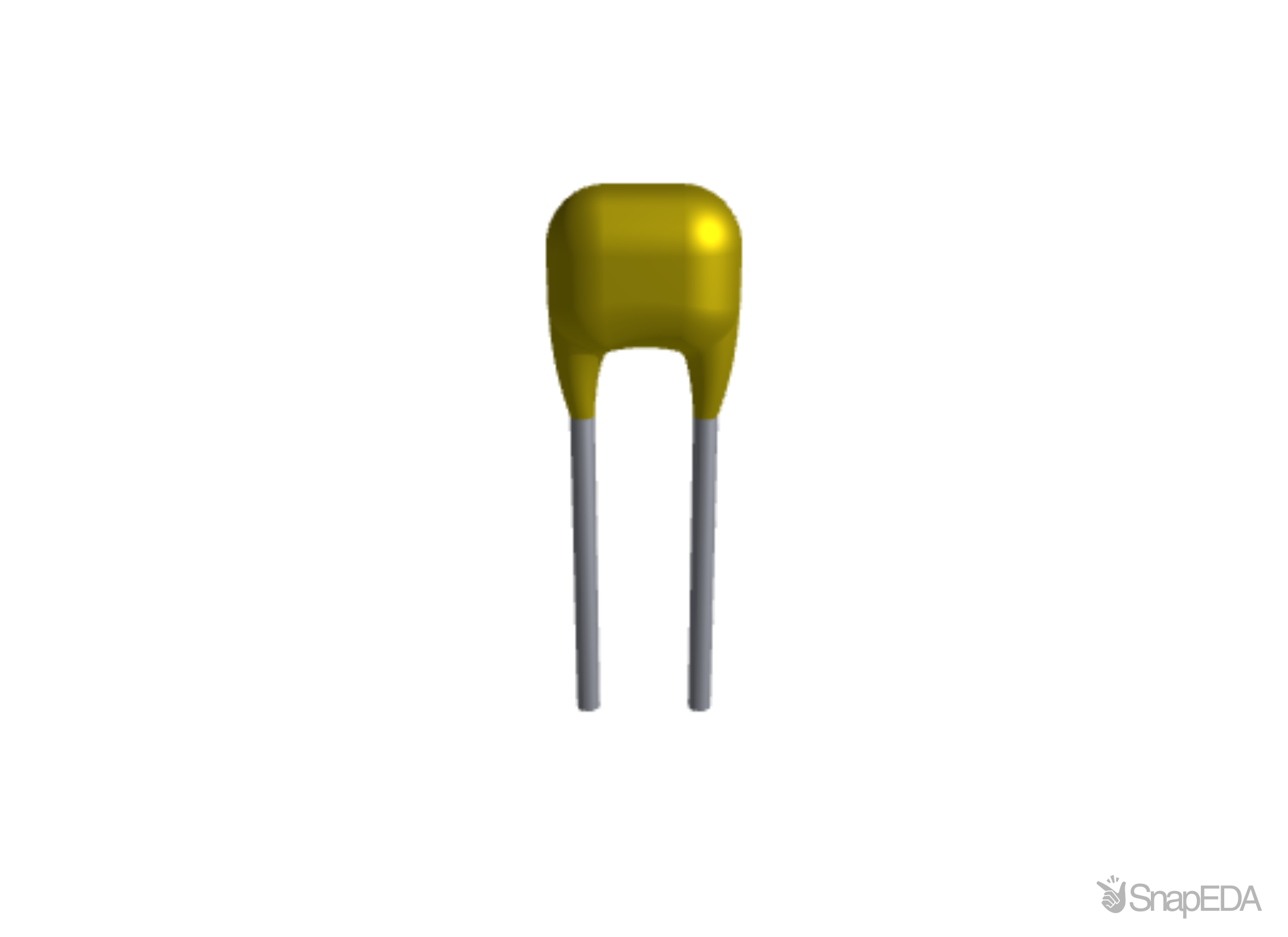

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C315C474K5R5TA
| Part Name | C315C474K5R5TA |
| Manufacturer | KEMET |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.81 x 2.54 x 3.14 (mm) |
| Mounting Type | Through Hole |
| Series | Goldmax 300 |
| Depth | 2.54 (mm) |
| Height | 3.14 (mm) |
| Capacitance | 470 (nF) |
| Length | 3.81 (mm) |
| Voltage (V) | 50 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Lead Spacing | 2.54 mm |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Radial |
| Dielectric | X7R |
