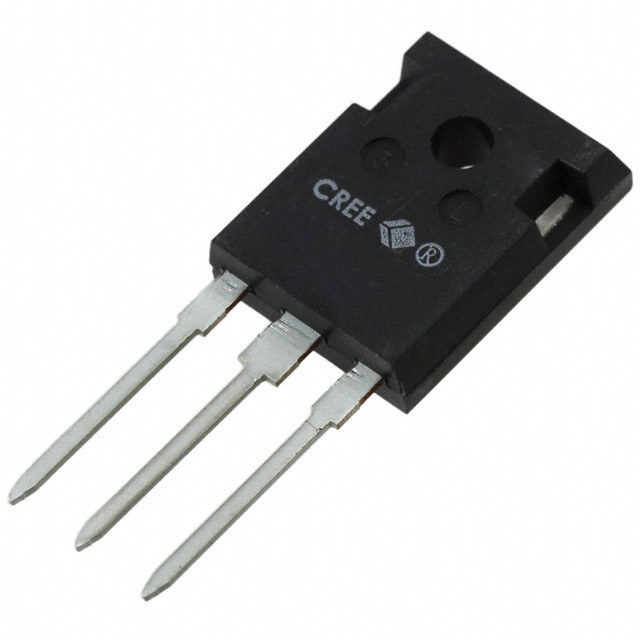

C3M0280090D
N-Channel 900V 11.5A (Tc) 54W (Tc) Through Hole TO-247-3
Availability: Out of Stock
Package Type: TO-247
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C3M0280090D by Cree and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

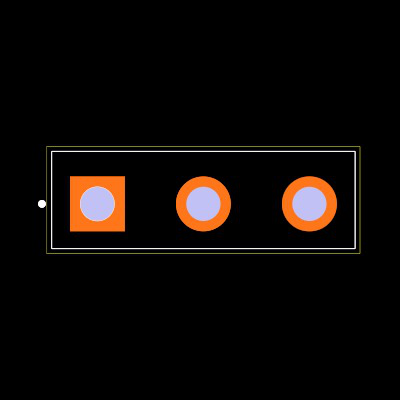

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C3M0280090D
| Part Name | C3M0280090D |
| Manufacturer | Cree/Wolfspeed |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 11.5 A |
| Transistor Material | SiC |
| Width | 21.1 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 900 V |
| Maximum Gate Threshold Voltage (V) | 3.5 (V) |
| Package Type | TO-247 |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 1.8 (V) |
| Maximum Operating Temperature | +150 °C |
| Channel Type | N |
| Length | 16.13 (mm) |
| Typical Gate Charge Vgs | 9.5 nC @ 15 V |
| Pin Count | 3 |
| Channel Mode | Enhancement |
| Mounting Type | Through Hole |
| Maximum Gate Source Voltage (V) | -8 V, +18 V |
| Maximum Power Dissipation | 54 W |
| Height | 5.21 (mm) |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage (V) | 4.8 (V) |
| Maximum Drain Source Resistance | 360 mΩ |
No issues have been reported for the C3M0280090D
