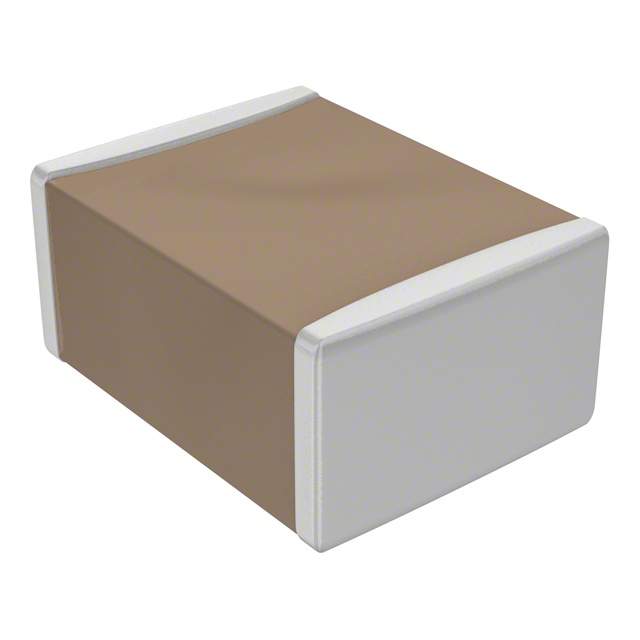

C5750X5R0J107M280KA
Multilayer Ceramic Capacitor, C Series, 100 - F, - 20%, X5R, 6.3 V, 2220 [5650 Metric]
Availability: In Stock
Package Type: 5750-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C5750X5R0J107M280KA by TDK and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C5750X5R0J107M280KA
| Part Name | C5750X5R0J107M280KA |
| Manufacturer | TDK |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 5.7 x 5 x 2.8 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 2220 (5750M) |
| Series | C |
| Depth | 5 (mm) |
| Height | 2.8 (mm) |
| Capacitance | 100 (µF) |
| Length | 5.7 (mm) |
| Voltage (V) | 6.3 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±20 (%) |
| Terminal Type | Surface Mount |
| Dielectric | X5R |
