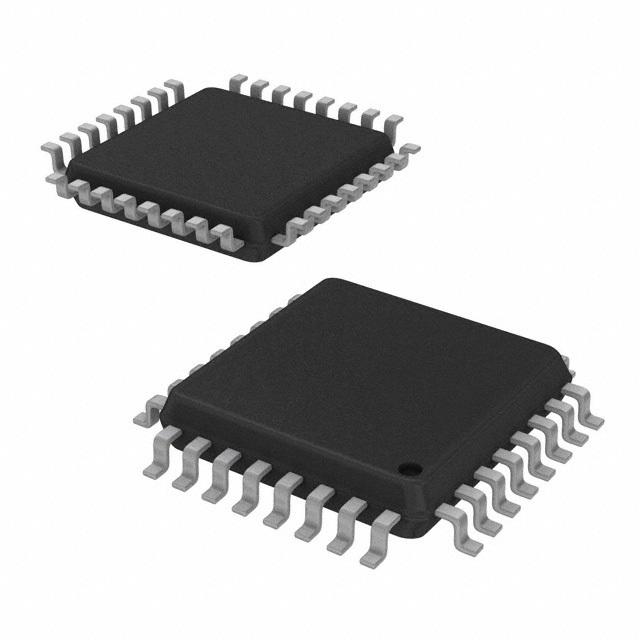

C8051F502-IQ
8051 C8051F50x Microcontroller IC 8-Bit 50MHz 64KB (64K x 8) FLASH 32-LQFP (7x7)
Availability: In Stock
Package Type: LQFP-32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C8051F502-IQ by Silicon Labs and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C8051F502-IQ
| Part Name | C8051F502-IQ |
| Manufacturer | Silicon Labs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 7 x 7 x 1.45 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 7 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 1 |
| Program Memory Size | 64 kB |
| Number Of Spi Channels | 1 |
| Ram Size | 4.352 kB |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | Harvard |
| Program Memory Type | Flash |
| Package Type | QFP |
| Maximum Frequency | 24 (MHz) |
| Number Of Pwm Units | 2 x 16 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +125 °C |
| Adcs | 32 x 12 bit |
| Family Name | C8051F |
| Device Core | 8051 |
| Length | 7 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 1 |
| Pin Count | 32 |
| Pulse Width Modulation | 1 (16 bit), 1 (8 → 11 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 1 |
| Height | 1.45 (mm) |
| Typical Operating Supply Voltage (V) | 1.8 → 5.25 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 0 |
| Number Of Uart Channels | 1 |
Inventory for the C8051F502-IQ by Silicon Labs from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
468
|
|
Visit Site | |
|
★ Featured
|
971
|
|
Visit Site |
No issues have been reported for the C8051F502-IQ
