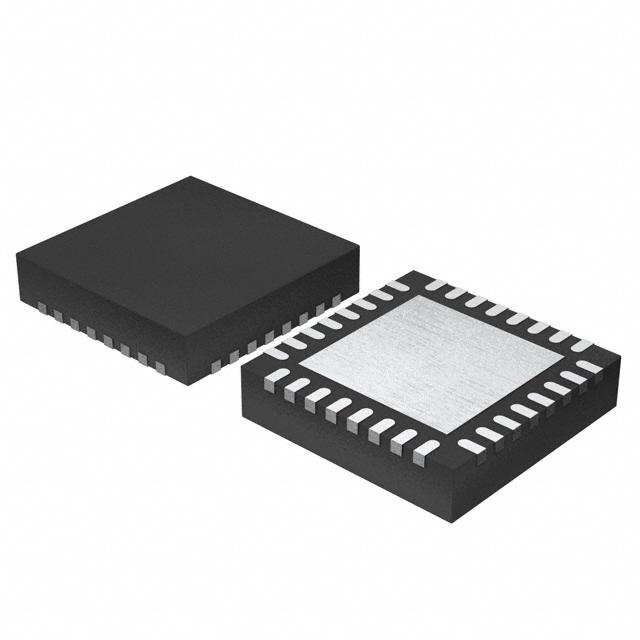

C8051F930-GM
8051 C8051F9xx Microcontroller IC 8-Bit 25MHz 64KB (64K x 8) FLASH 32-QFN (5x5)
Availability: In Stock
Package Type: QFN-32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the C8051F930-GM by Silicon Labs and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the C8051F930-GM
| Part Name | C8051F930-GM |
| Manufacturer | Silicon Labs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 5 x 5 x 1 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 5 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 64 kB |
| Number Of Spi Channels | 1 |
| Ram Size | 4.352 kB |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | Harvard |
| Program Memory Type | Flash |
| Package Type | QFN |
| Maximum Frequency | 25 (MHz) |
| Number Of Pwm Units | 2 |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 1(16 x 16 bit) |
| Family Name | C8051F |
| Device Core | 8051 |
| Length | 5 (mm) |
| Usb Channels | 1 |
| Number Of Lin Channels | 0 |
| Pin Count | 32 |
| Pulse Width Modulation | 1(16 bit), 1(8 → 15 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 0 |
| Height | 1 (mm) |
| Typical Operating Supply Voltage (V) | 0.9 → 3.6 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 0 |
| Number Of Uart Channels | 1 |
