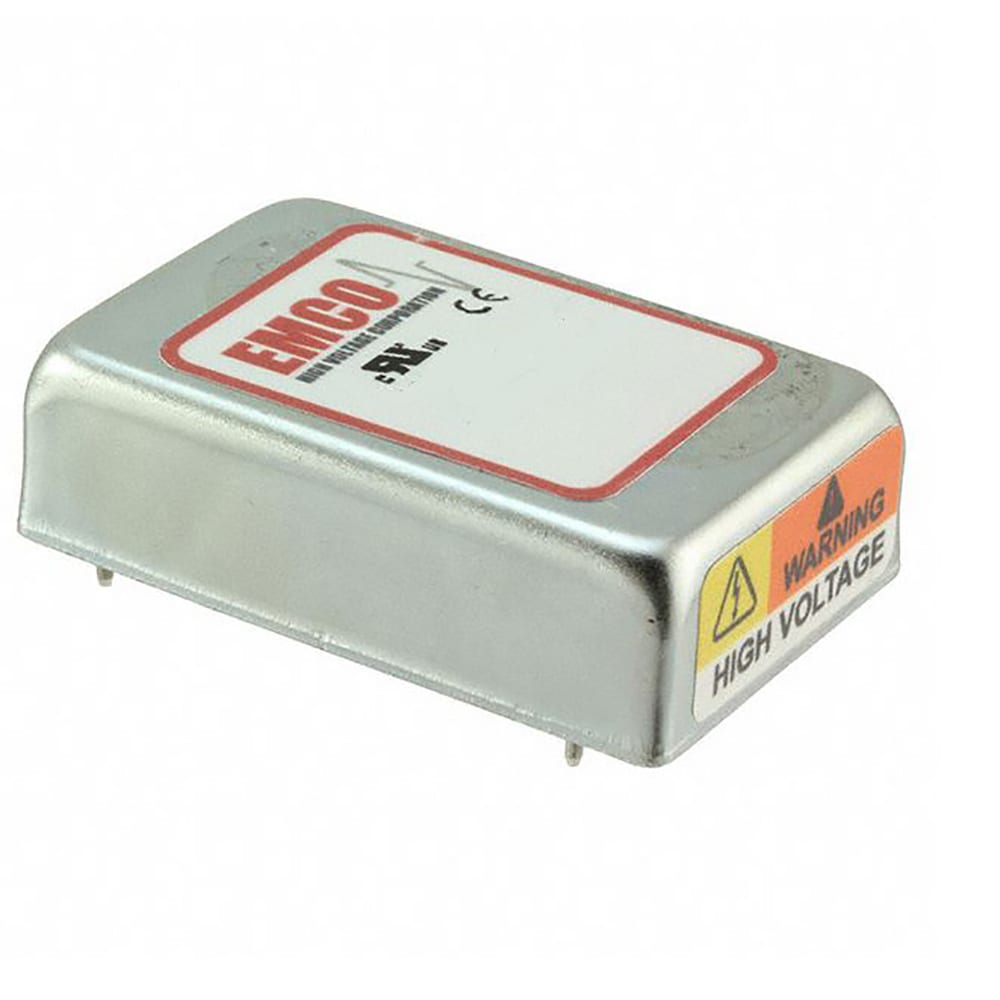

CA20P-5
DC-DC Converter, Thru Hole, DIP, 1W, 2000V@500A, 4.75-5.25V In, CA Series | XP Power CA20P-5
Availability: Out of Stock
Package Type: DIP-8
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CA20P-5 by XP Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

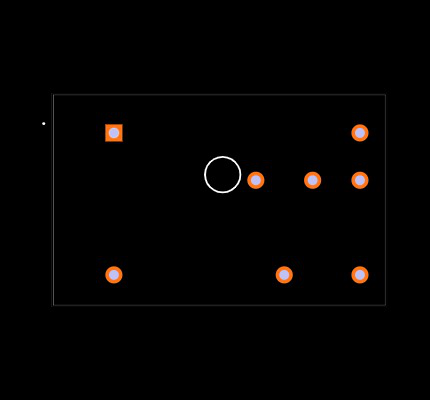

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CA20P-5
| Part Name | CA20P-5 |
| Manufacturer | XP Power |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +50 (°C) |
| Output Current (A) | 500 (µA) |
| Mounting Type | PCB Mount |
| Series | CA |
| Input Voltage Range (V) | 4.75 → 5.25 V dc |
| Isolated | No |
| Width | 27.94 (mm) |
| Length | 44.45 (mm) |
| Load Regulation | 0.00001 |
| Minimum Temperature | -10 (°C) |
| Input Voltage Nominal (V) | 5 V dc |
| Power Rating | 1 (W) |
| Output Voltage (V) | 2 (kV) |
Inventory for the CA20P-5 by XP Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| RS UK |
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TRC Electronics |
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the CA20P-5
