CA3130
General Purpose Amplifier 1 Circuit - 8-SOIC
Availability: Out of Stock
Package Type: DIP-8
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CA3130 by Renesas and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

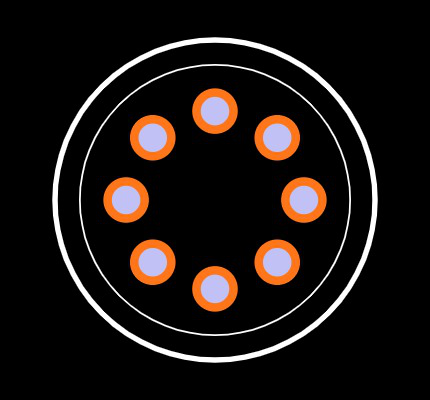

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CA3130
| Part Name | CA3130 |
| Manufacturer | Renesas Electronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Rail To Rail | No |
| Typical Dual Supply Voltage (V) | ±3 V, ±5 V |
| Dimensions | 10.16 x 7.11 x 4.95 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 30 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 1 |
| Length | 10.16 (mm) |
| Height | 4.95 (mm) |
| Width | 7.11 (mm) |
| Typical Single Supply Voltage (V) | 6 → 15 V |
| Package Type | PDIP |
| Minimum Operating Temperature | -55 °C |
| Typical Voltage Gain (V) | 100 dB |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
No issues have been reported for the CA3130
If you experienced any issues with the symbol or footprint, please report it.
