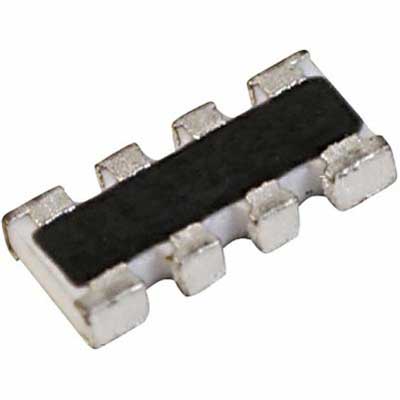

CAY16-101J4LF
Resistor, Chip Array,100 Ohms,62 mW,+ 5%,50 V (Max.) | Bourns CAY16-101J4LF
Availability: In Stock
Package Type: NON STANDARD-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CAY16-101J4LF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CAY16-101J4LF
| Part Name | CAY16-101J4LF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Power Rating Per Resistor | 0.062 (W) |
| Package Case | 1206 (3216M) |
| Series | CAY16 |
| Resistor Type | Array |
| Termination Style | Convex |
| Resistance | 100 (Ω) |
| Temperature Coefficient | ±200 (ppm/°C) |
| Height | 0.5 (mm) |
| Number Of Terminals | 8 |
| Depth | 1.6 (mm) |
| Length | 3.2 (mm) |
| Number Of Resistors | 4 |
| Minimum Operating Temperature | -55 (°C) |
| Case Style | Moulded |
| Power Rating | 0.25 (W) |
| Circuit Designator | ISOL |
| Tolerance | ±5 (%) |
| Maximum Operating Temperature | +125 (°C) |
| Dimensions | 3.2 x 1.6 x 0.5 (mm) |
Inventory for the CAY16-101J4LF by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
122,281
|
|
Visit Site | |
|
★ Featured
|
71,402
|
|
Visit Site | |
|
★ Featured
|
69,040
|
15,465 x $0.02
|
Visit Site | |
| Arrow Electronics |
995,000
|
|
Visit Site | |
| Onlinecomponents |
395,506
|
|
Visit Site | |
| RS Americas |
5,000
|
5,000 x $0.07
|
Visit Site | |
| Verical |
360,000
|
5,000 x $0.01
|
Visit Site |
No issues have been reported for the CAY16-101J4LF
