CAY17-103JALF
Resistor,Bussed Array, 10 Kilohms, 5%, 250MW, 50V (Max) | Bourns CAY17-103JALF
Availability: Out of Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CAY17-103JALF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

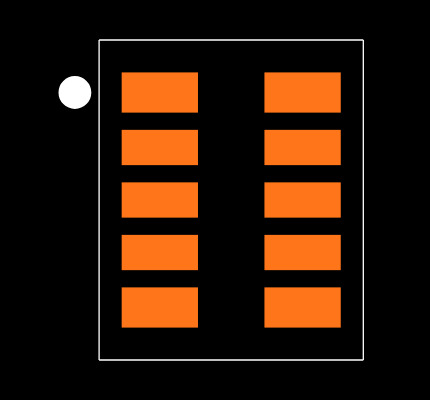

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CAY17-103JALF
| Part Name | CAY17-103JALF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Operating Temperature | +155 (°C) |
| Power Rating Per Resistor | 0.031 (W) |
| Series | CAY17 |
| Number Of Terminals | 10 |
| Termination Style | Convex |
| Resistance | 10 (kΩ) |
| Temperature Coefficient | ±250 (ppm/°C) |
| Height | 0.5 (mm) |
| Depth | 1.6 (mm) |
| Length | 3.2 (mm) |
| Number Of Resistors | 8 |
| Minimum Operating Temperature | -55 (°C) |
| Dimensions | 3.2 x 1.6 x 0.5 (mm) |
| Case Style | Moulded |
| Power Rating | 0.25 (W) |
| Circuit Designator | BUS |
| Tolerance | ±5 (%) |
| Resistor Type | Array |
| Package/Case | 1206 (3216M) |
No issues have been reported for the CAY17-103JALF
