CB1-M-24V

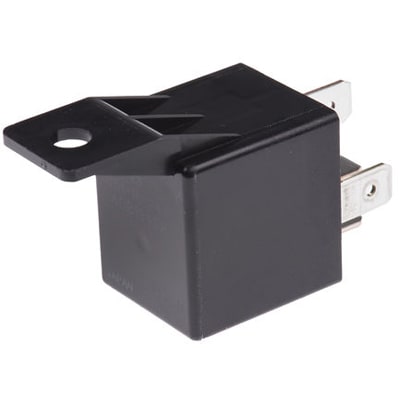

Relay, General Purpose, Auto, SPDT, 24VDC Coil, Sealed, Bracket Mnt, Blade Term. | Panasonic Electronic Components CB1-M-24V
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CB1-M-24V by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CB1-M-24V
| Part Name | CB1-M-24V |
| Manufacturer | Panasonic Electric Works |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Life | 50000 Operations |
| Maximum Operating Temperature | +85 (°C) |
| Mounting Type | PCB Mount |
| Coil Power | 1.8 (W) |
| Terminal Type | Quick Connect |
| Switching Current (A) | 40 (A) |
| Coil Voltage (V) | 24 (V dc) |
| Length | 26 (mm) |
| Height | 25 (mm) |
| Depth | 22 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Isolation Coil To Contact | 500 (V rms) |
| Contact Material | Silver Alloy |
| Number Of Poles | 1 |
| Maximum Switching Voltage (Dc) (V) | 14 (V) |
| Contact Configuration | SPDT |
| Coil Resistance | 320 (Ω) |
Inventory for the CB1-M-24V by Panasonic from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
1,916
|
|
Visit Site | |
| Heilind Americas |
407
|
|
Visit Site | |
| Newark |
559
|
|
Visit Site | |
| RS UK |
1,162
|
1 x $8.38
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
464
|
|
Visit Site | |
| TTI Americas |
1,355
|
|
Visit Site | |
| element14 Singapore |
1,901
|
|
Visit Site |
No issues have been reported for the CB1-M-24V
