CBR08C270JAGAC
0805 CBR 27pF Ceramic Multilayer Capacitor,250V dc,+125C,C0G Dielectric,+/-5% | KEMET CBR08C270JAGAC
Availability: Out of Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CBR08C270JAGAC by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

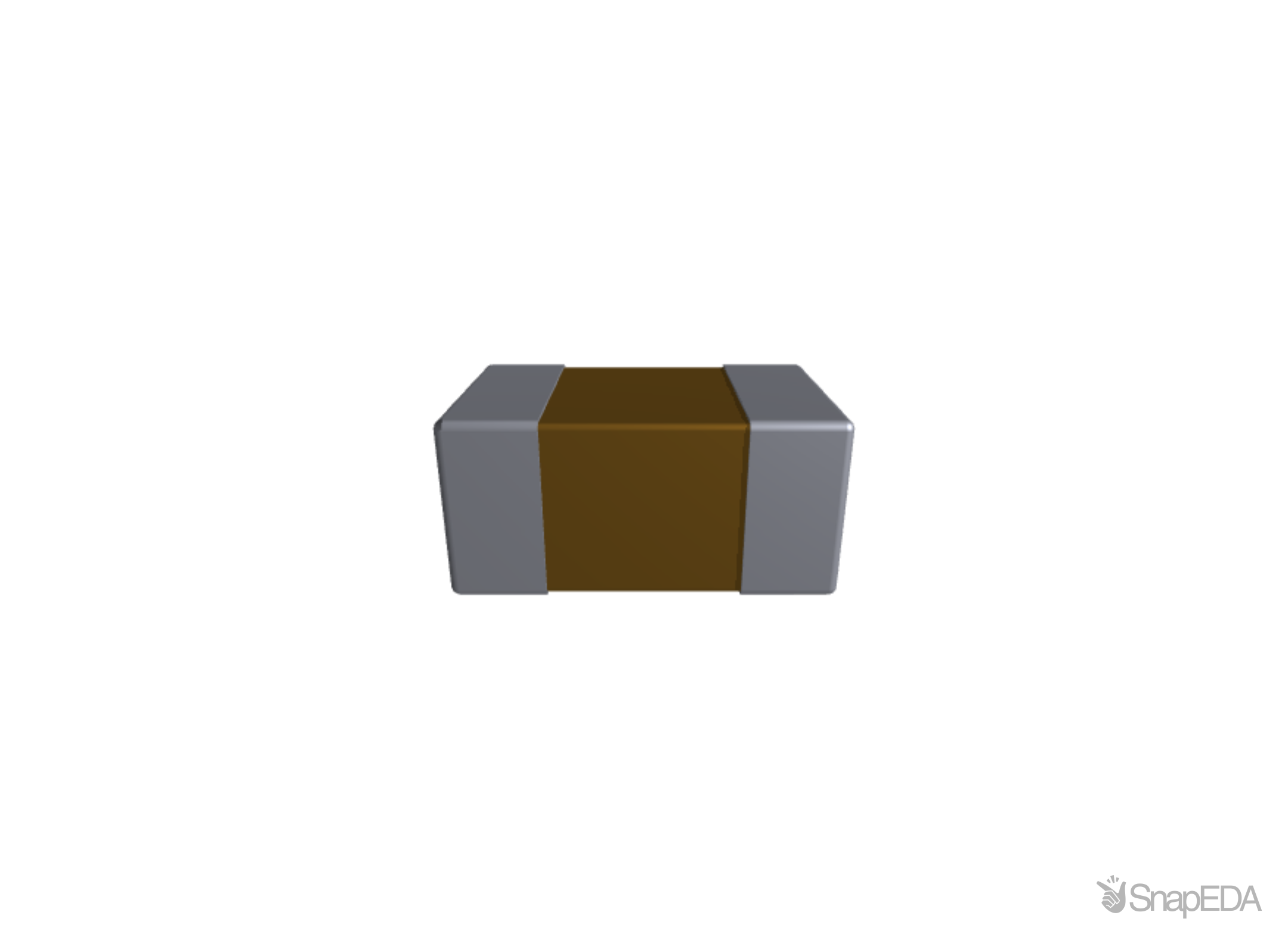

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CBR08C270JAGAC
| Part Name | CBR08C270JAGAC |
| Manufacturer | KEMET |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2 x 1.25 x 0.85 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 0805 (2012M) |
| Series | HiQ-CBR |
| Depth | 1.25 (mm) |
| Height | 0.85 (mm) |
| Capacitance | 27 (pF) |
| Length | 2 (mm) |
| Voltage (V) | 250 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±5 (%) |
| Dielectric | C0G |
Inventory for the CBR08C270JAGAC by Yageo from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site |
No issues have been reported for the CBR08C270JAGAC
If you experienced any issues with the symbol or footprint, please report it.
