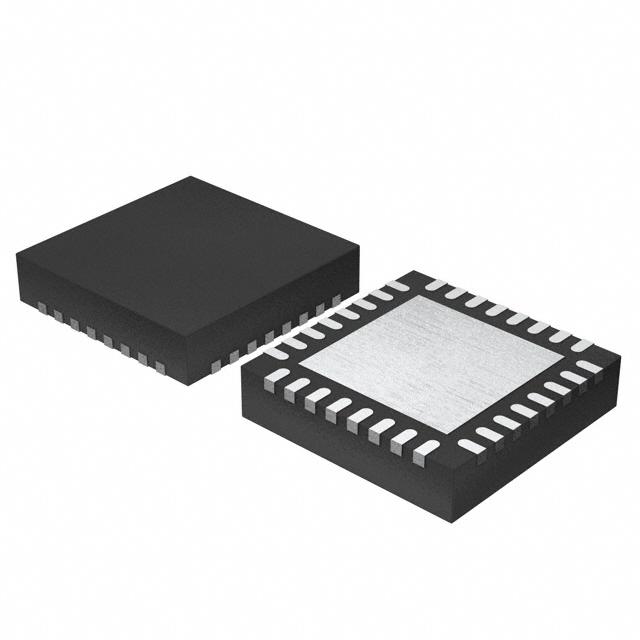

CC1200RHBT
Low power and high performance wireless transceiver
Availability: In Stock
Package Type: VQFN-32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CC1200RHBT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CC1200RHBT
| Part Name | CC1200RHBT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Operating Band 2 Frequency | 410 (MHz) |
| Dimensions | 5.15 x 5.15 x 0.95 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Minimum Operating Band 3 Frequency | 164 (MHz) |
| Technology | Low IF/ISM Transceiver |
| Maximum Operating Band 3 Frequency | 190 (MHz) |
| Minimum Operating Supply Voltage (V) | 2 V |
| Maximum Operating Band 1 Frequency | 950 (MHz) |
| Height | 0.95 (mm) |
| Modulation Technique | FSK, GFSK, MSK, OOK |
| Width | 5.15 (mm) |
| Length | 5.15 (mm) |
| Maximum Operating Band 2 Frequency | 475 (MHz) |
| Package Type | VQFN |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Number Of Operating Bands | 3 |
| Minimum Operating Band 1 Frequency | 820 (MHz) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 32 |
Inventory for the CC1200RHBT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,235
|
|
Visit Site | |
|
★ Featured
|
8,590
|
182 x $1.65
|
Visit Site | |
| Arrow Asia |
50
|
|
Visit Site | |
| Texas Instruments |
4,734
|
|
Visit Site | |
| Verical |
50
|
|
Visit Site |
No issues have been reported for the CC1200RHBT
