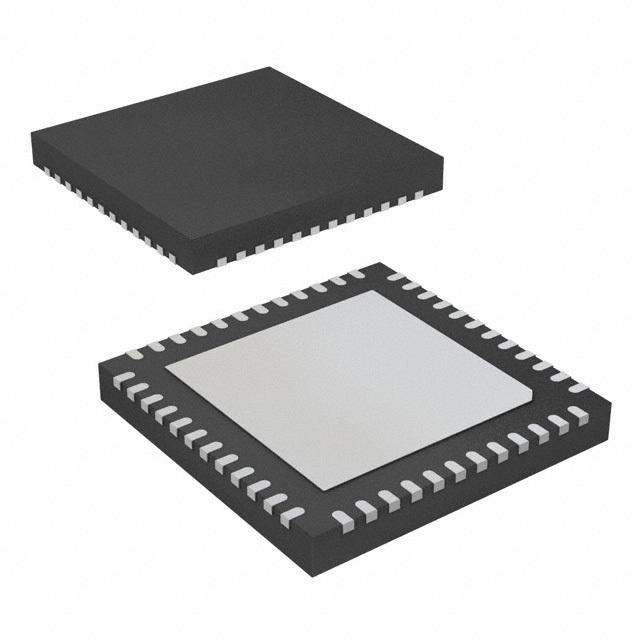

CC2630F128RGZT
SimpleLink™ 32-bit Arm Cortex-M3 Zigbee and 6LoWPAN wireless MCU with 128kB Flash
Availability: In Stock
Package Type: VQFN-48
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CC2630F128RGZT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CC2630F128RGZT
| Part Name | CC2630F128RGZT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Adcs | 1 (8 x 12 bit) |
| Typical Operating Supply Voltage (V) | 3.8 (Maximum) V |
| Data Bus Width | 16 (bit) |
| Dimensions | 4.15 x 4.15 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Family Name | CC26xx |
| Data Rate | 250 (kbps) |
| Program Memory Type | Flash |
| Height | 0.95 (mm) |
| Device Core | ARM Cortex M0, ARM Cortex M3 |
| Width | 4.15 (mm) |
| Length | 4.15 (mm) |
| Package Type | VQFN |
| Maximum Frequency | 48 (MHz) |
| Minimum Operating Temperature | -40 °C |
| Program Memory Size | 128 kB |
| Number Of Adc Units | 1 |
| Ram Size | 20 kB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 48 |
| Instruction Set Architecture | ARM |
Inventory for the CC2630F128RGZT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
52
|
|
Visit Site | |
|
★ Featured
|
153
|
|
Visit Site | |
|
★ Featured
|
25,000
|
54 x $5.64
|
Visit Site | |
| Texas Instruments |
56,500
|
|
Visit Site |
No issues have been reported for the CC2630F128RGZT
